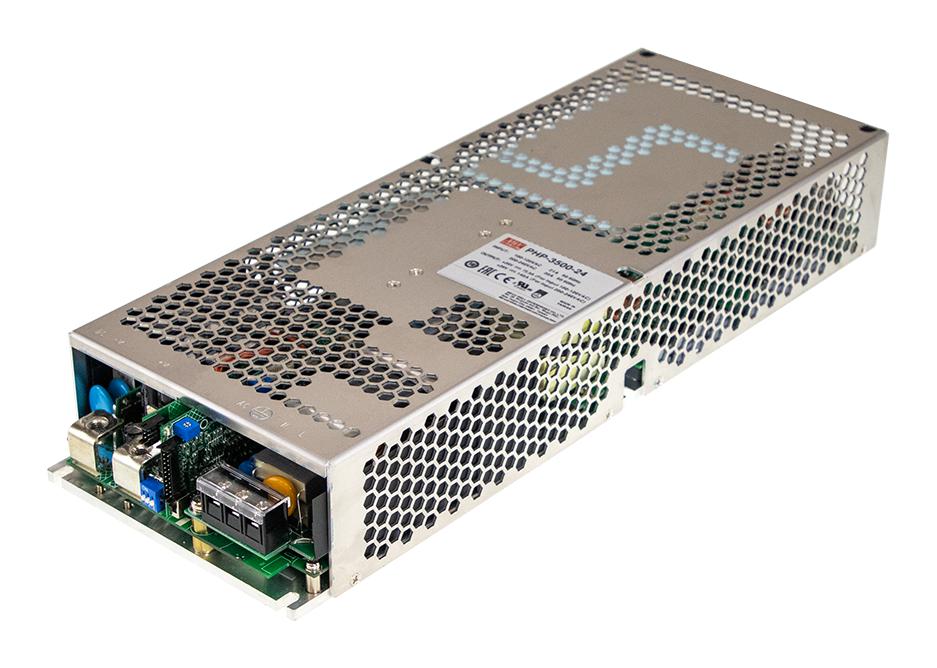

MEAN WELL PHP350024 High Power Industrial Power Supply
The PHP-3500 series is a slim, high-efficiency 3500W power supply ideal for industrial automation and control systems. Operating from -30°C to +70°C, it features internal active PFC, PMBus communication, and comprehensive protections including overvoltage, overload, and over temperature. Its water conduction cooling design enables fanless operation, ensuring reliability in harsh environments. With a compact low profile of 60mm, it supports parallel current sharing up to 14kW and provides remote control, DC OK signaling, and optional cold plate integration. Suitable for demanding industrial applications requiring high performance and durability.
MEAN WELL PHP350024 High Power Industrial Power Supply Specifications:
- Input Voltage: 90~264VAC, 127~370VDC
- Output Voltage and Current: 24V at 145A, 48V at Rated current (TBA)
- Rated Power: 3480-3504W
- Ripple & Noise: 300mVp-p (24V), 480mVp-p (48V)
- Efficiency: up to 96%
- Operating Temperature: -30°C to +70°C
- Dimensions: 380mm x 141.4mm x 60mm
- Protections: Overvoltage, Overload, Over temperature, Short circuit
- Communication Protocol: PMBus, optional CANbus
- Cooling: Water conduction or optional cold plate, fanless operation
- Safety Standards: UL 62368-1, EN 62368-1, EN61558-1, EN60335-1
- Additional: Active current sharing up to 14kW (3+1 units), remote ON-OFF, DC-OK signal, optional thermal interface interface.
Buy the Mean Well PHP-3500 Reliable Power Supply for Industrial Applications
Purchase the Mean Well PHP-3500 series online today for robust, reliable power in demanding industrial environments. Its fanless, conduction cooling design ensures quiet, maintenance-free operation, while high efficiency and comprehensive protections safeguard your equipment. Versatile and compact, the PHP-3500 supports parallel operation up to 14kW, with remote ON-OFF, DC-OK signaling, and optional cold plate accessories for quick setup. Trust this power supply to deliver consistent, high-quality power for industrial automation, control systems, and electronic equipment demanding durability and efficiency.
Order your Mean Well PHP-3500 conduction cooling power supply today and ensure dependable, high-performance power for your industrial projects.
Frequently Asked Questions
Where can I buy MEAN WELL PHP350024?
You can click on the BUY or RFQ button to purchase PHP350024 from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part PHP350024?
You can download the PHP350024 datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of PHP350024?
MEAN WELL
