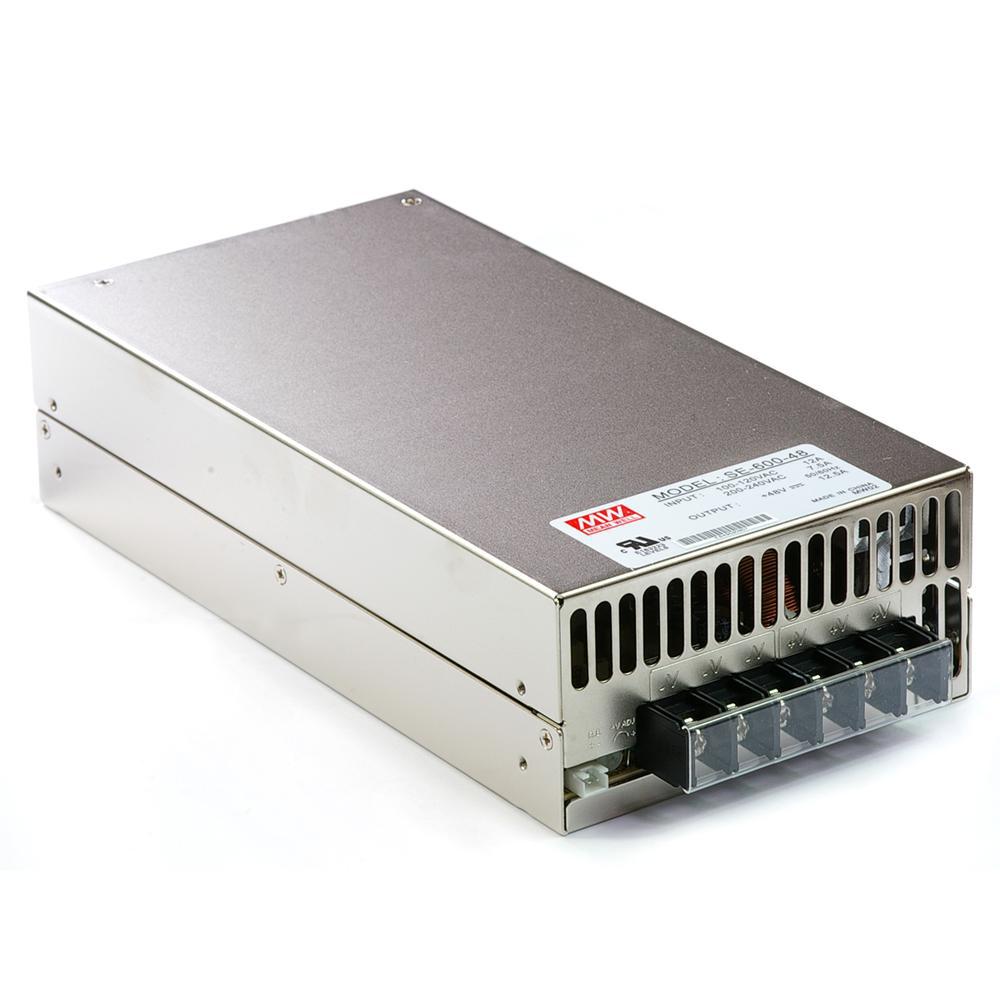

MEAN WELL PSSP11142 Power Supply
This 600W enclosed switching power supply delivers a 48V DC output with a current capacity of 12.5A, ideal for industrial automation and control systems. It features active surge current limiting, selectable input voltages of 90-132VAC and 180-264VAC via switch, and includes a built-in fan for active cooling, ensuring reliable operation. Protection functions include short circuit, overload, overvoltage, and overtemperature shutdown. Compact and efficient, it operates efficiently with high power density, making it suitable for various manufacturing and engineering applications. Dimensions are approximately 9.7 inches by 4.9 inches by 2.4 inches.
MEAN WELL PSSP11142 Power Supply Specifications:
- Power Output: 600W
- DC Output Voltage: 48V
- Rated Current: 12.5A
- Input Voltage Range: 90-132VAC / 180-264VAC (switched)
- Frequency Range: 47-63Hz
- Efficiency: 88%
- Ripple & Noise: 200mVp-p
- Protection: Short circuit, Overload, Overvoltage, Over temperature
- Cooling: Built-in DC fan
- Dimensions: 247mm x 127mm x 63.5mm
- Operating Temperature: -20°C to +70°C
- Working Humidity: 20-90% RH non-condensing
- Safety Standards: UL60950-1 approved
- MTBF: 197,000 hours at 25°C
- Weight: 2.1kg
Buy the Buy MEAN WELL Power Supply Part Number PSSP11142 Online
Purchase the MEAN WELL PSSP11142 600W power supply online today to benefit from a high-performance, efficient, and reliable power source. Designed for industrial and control applications, it features active surge current limiting, multiple input voltage options, built-in cooling fan, and essential protections including short circuit, overload, overvoltage, and overtemperature shutdown. Its compact size and high efficiency make it suitable for tight spaces and demanding environments. Secure your project’s power needs with a trusted industrial-grade supply available for quick online ordering.
Order your MEAN WELL Series PSSP11142 power supply today and ensure reliable performance for your industrial and automation projects.
Frequently Asked Questions
Where can I buy MEAN WELL PSSP11142?
You can click on the BUY or RFQ button to purchase PSSP11142 from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part PSSP11142?
You can download the PSSP11142 datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of PSSP11142?
MEAN WELL
