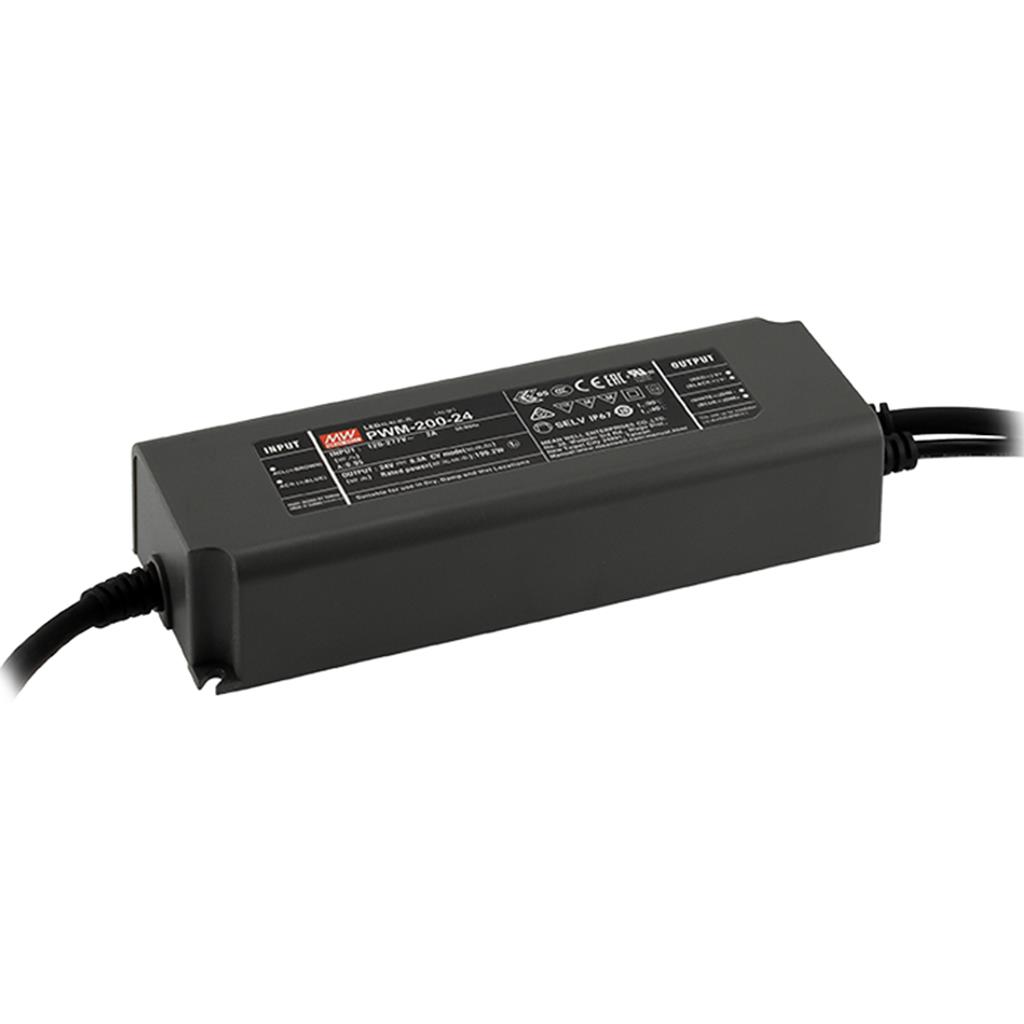

MEAN WELL PWM20024 200W Constant Voltage PWM Output
The MEAN WELL PWM-200-24 series is a 200W AC/DC LED driver designed for constant voltage mode with PWM style output, ensuring consistent color temperature and brightness for LED strips and bulbs. It incorporates a built-in KNX interface, eliminating the need for complex KNX-DALI gateways and offering protection against manipulation in building automation projects. Operating from 100-305VAC, it provides models with output voltages between 12V and 48V. With high efficiency (up to 94%) and a fanless design, the series operates within a wide temperature range (-40°C to +85°C).
MEAN WELL PWM20024 200W Constant Voltage PWM Output Specifications:
- Model: PWM-200-24
- DC Voltage: 24V
- Rated Current: 8.3A
- Rated Power: 199.2W
- Output: Constant Voltage PWM
- Setup Rise Time: 500ms, 80ms/230VAC, 1200ms, 80ms/115VAC
- Hold Up Time: 10ms/230VAC or 115VAC
- Voltage Range: 100 ~ 305VAC, 142 ~ 431VDC
- Frequency Range: 47 ~ 63Hz
- Power Factor: >0.96 (230VAC)
- Efficiency: 92%
- AC Current: 1.1A / 230VAC
- Input: 100 ~ 305VAC
- Inrush Current: 65A
- Leakage Current: <0.75mA / 277VAC
- Safety Standards: UL8750, CSA C22.2 No. 250.13-12, ENEC BS EN/EN61347-1
- Working Temp: -40 ~ +85°C
- Working Humidity: 20 ~ 95% RH
- Storage Temp, Humidity: -40 ~ +85°C, 10 ~ 95% RH
- Temp Coefficient: ±0.03%/°C
- Vibration: 10 ~ 500Hz
- MTBF: 1658.9 K hrs
- Dimension: 195*68*39.5mm
- PWM Frequency: 200~4000Hz (user changeable via ETS)
- Dimming Range: 13 ~ 18V
- Overload: 108 ~ 135% rated output power
- Over Voltage: Shut down o/p voltage, re-power on to recover
- Over Temperature: Shut down o/p voltage, re-power on to recover
