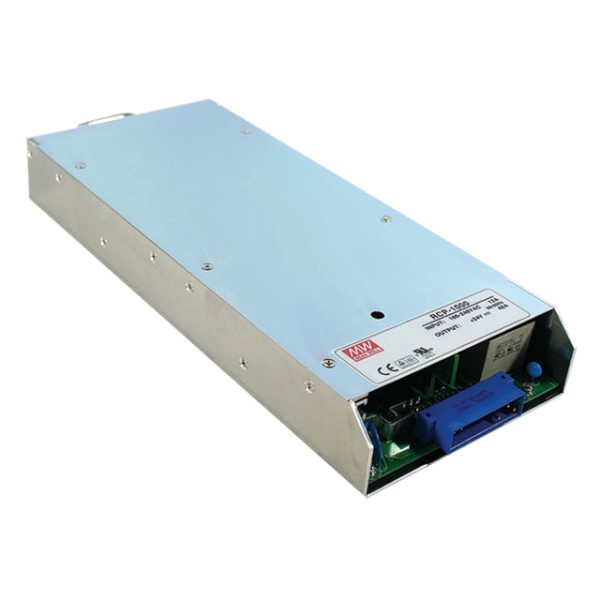

MEAN WELL RCP100048C 1000W Rackmount Power Supply
The MEAN WELL RCP-1000 series is a 1000W single output rack mountable front end AC/DC power supply. This series operates for 90~264VAC input voltage and offers models with the DC output mostly demanded from the industry. Each model is cooled by the built-in DC fan with fan speed control, working for the temperature up to 60℃. The RCP-1000 provides vast design flexibility by equipping various built-in functions such as the output programming, active current sharing, remote control, auxiliary power, alarm signal, etc. It is suitable for industrial automation, distributed power architecture systems, wireless/telecommunication solutions, redundant power systems, electric vehicle charger systems, and constant current source systems.
MEAN WELL RCP100048C 1000W Rackmount Power Supply Specifications:
- Dimensions: 295 x 127 x 41 mm
- Input Voltage: 90~264VAC; 127~370VDC
- Frequency Range: 47~63Hz
- Output Voltage: 48V
- Rated Current: 21A
- Rated Power: 1008W
- Efficiency: 87%
- Voltage Adjustment Range: 46.3 ~ 49.7V
- Line Regulation: ±1.0%
- Load Regulation: ±0.5%
- Ripple and Noise: <0.5%
- Hold-up Time: 1000ms
- Protection: Short Circuit, Overload, Over Voltage, Over Temperature
- Remote Sense: Compensate voltage drop up to 0.5V
- Remote On-Off Control: Electrical signal or dry contact
- Auxiliary Power: 5V @ 0.3A
- Safety Standards: UL62368-1, CSA C22.2, TUVBS EN/EN62368-1, EAC TP TC 004
- Withstand Voltage: I/P-O/P:3KVAC, I/P-FG:2KVAC, O/P-FG:0.7KVDC
- MTBF: 840.8K hrs min.
- Packing: 1.93Kg; 6pcs/12.6Kg/1.04CUFT
