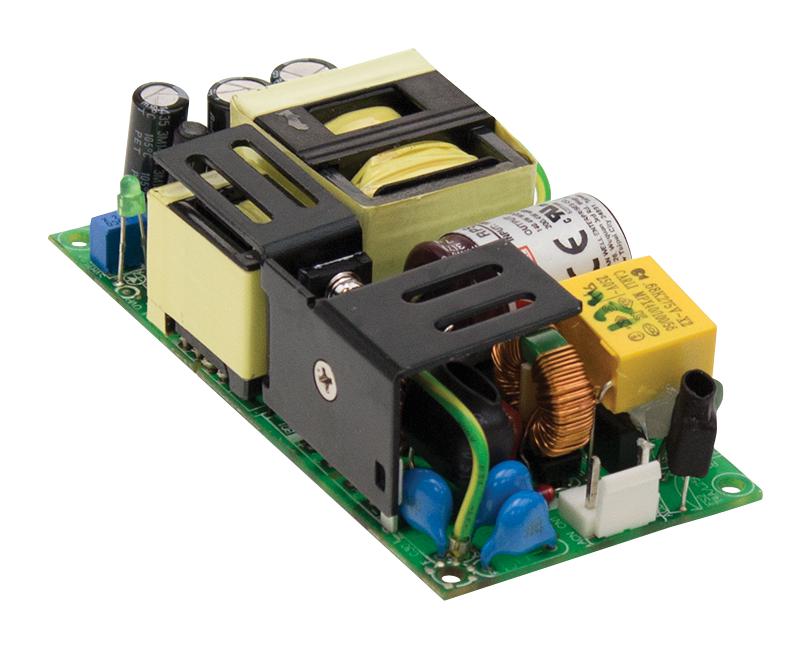

MEAN WELL RPS20027 Medical Power Supply
RPS-200 is a high-reliability 200W medical power supply with a compact 4x2-inch footprint, offering 12V to 48V output. It features high efficiency up to 94%, low no-load power consumption below 0.5W, and complies with international medical safety and EMC standards. Suitable for both Class I and Class II medical systems, it provides excellent performance for applications like hemodialysis, medical monitors, sleep apnea devices, and electric beds. Its robust protections include overload, overvoltage, and overtemperature shutdown, with optional forced air cooling and built-in fan supply for optimal thermal management.
MEAN WELL RPS20027 Medical Power Supply Specifications:
- Power Output: 200W
- Input Voltage: 80~264VAC
- Output Voltages: 12V, 15V, 24V, 27V, 48V
- Efficiency: Up to 94%
- No Load Power Consumption: <0.5W
- Leakage Current: <190A
- Ripple & Noise: Max 150mVp-p
- Protection: Short circuit, Overload, Overvoltage, Over temperature
- Cooling Method: Free air convection or forced air with 10CFM fan
- FAN Supply: 12V@0.5A
- Operating Temp: -30°C to +70°C
- Storage Temp: -40°C to +85°C
- Certifications: IEC60601-1, UL60601-1, EN60601-1
- Isolation Resistance: 2xMOPP primary-secondary
- Dimensions: 101.6mm x 50.8mm x 29mm for PCB; 103.4mm x 62mm x 40mm for enclosed type
- Vibration: 10 ~ 500Hz, 2G
- MTBF: 500,200 hours
Buy the Buy Mean Well Medical Power Supply Part Number RPS20027 Online
Purchase the Mean Well RPS20027 medical power supply online today and enjoy reliable 200W output with up to 94% efficiency. Ideal for medical equipment requiring low noise, low leakage current, and comprehensive protections, this power supply ensures safety standards like IEC60601-1 and UL60601-1 are met. Its compact design fits applications like hemodialysis, medical monitors, sleep therapy devices, and electric beds. Easy to install with built-in fan supply, it guarantees consistent performance even in demanding healthcare environments. Order now for swift delivery!
Buy Mean Well RPS20027 now and experience unmatched reliability and performance for your medical devices with high efficiency and safety features.
