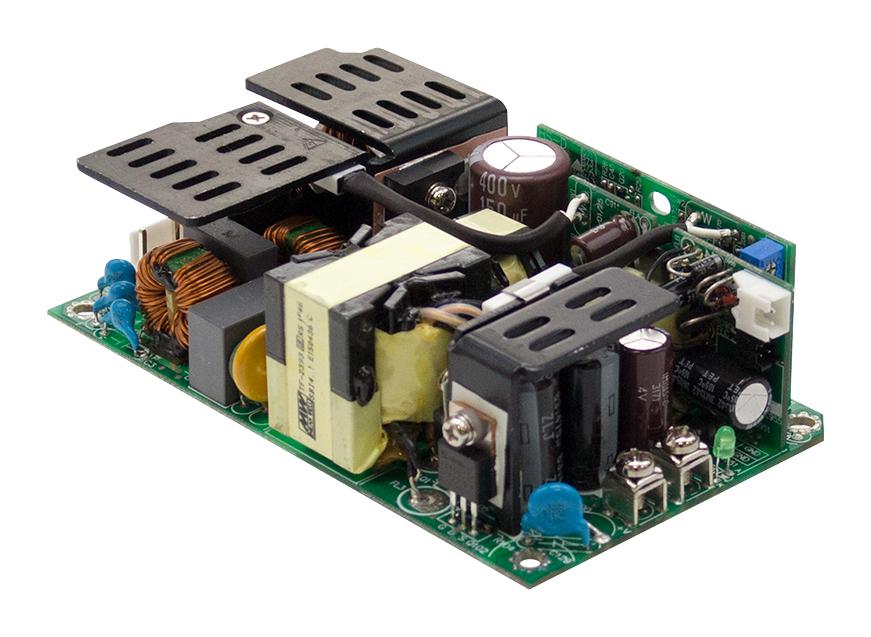

MEAN WELL RPS30015 Medical Power Supply
The RPS-300 series is a highly reliable 300W medical power supply designed for medical systems, including hemodialysis machines, sleep apnea devices, and electric beds. It features high efficiency up to 93%, low no-load power consumption below 0.5W, and extremely low leakage current under 150μA. Compliant with international medical safety standards (2 x MOPP) and EMC requirements, it offers multiple output voltages from 12V to 48V, with optional enclosed models and various protections for long-term durability and operational stability.
MEAN WELL RPS30015 Medical Power Supply Specifications:
- Input Voltage: 90~264VAC
- Output Voltages: 12V, 15V, 24V, 27V, 48V
- Rated Power: 300W
- Maximum Output Current: 25A for 12V, 20A for 15V, 12.5A for 24V, 11.12A for 27V, 6.25A for 48V
- Ripple & Noise: 120mVp-p to 250mVp-p depending on model
- Efficiency: up to 93%
- Leakage Current: Less than 150μA (PCB type), Less than 200μA (Enclosed type)
- Protections: Short circuit, Overload (105-135%), Over voltage, Over temperature
- Isolation: 2xMOPP primary-secondary, 1xMOPP primary-earth, 1xMOPP secondary-earth
- Dimensions: PCB type 127*76.2*35mm, Enclosed type 130*86*43mm
- Operating Temperature: -30°C to +70°C
- Certifications: IEC60601-1, TUV EN60601-1, UL, ANSI/AAMI ES60601-1
- MTBF: 160,000 hours
Buy the Mean Well RPS-300 U–Reliable Medical Power Supply for Industrial Applications
Purchase the highly reliable 300W medical power supply online today and ensure your healthcare devices operate efficiently and safely. With high efficiency up to 93%, low-no load power consumption below 0.5W, and compliance with international safety standards, the RPS-300 series is ideal for critical medical systems like dialysis machines, sleep apnea devices, and electric beds. Designed for durability, it features multiple protections including short circuit, overvoltage, and over temperature protection. Easy to install and available with optional enclosed models, order now for a dependable power solution.
Get Mean Well RPS-300 today—built for precision, high efficiency, and long-lasting durability in medical and industrial environments.
Frequently Asked Questions
Where can I buy MEAN WELL RPS30015?
You can click on the BUY or RFQ button to purchase RPS30015 from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part RPS30015?
You can download the RPS30015 datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of RPS30015?
MEAN WELL
