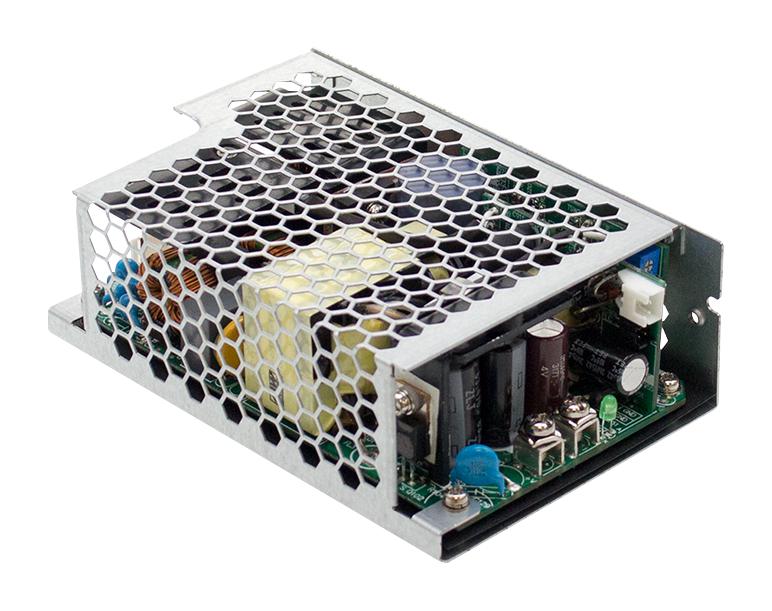

MEAN WELL RPS30048C Medical Power Supply
The RPS-300 series is a highly reliable 300W medical power supply with a compact 5x3 inch footprint. It features medical safety certification (2 x MOPP) according to ANSI/AAMI ES60601-1 and IEC60601-1, suitable for BF applications. This efficient PSU accepts 90-264VAC input, offers multiple output voltages from 12V to 48V, with up to 93% efficiency and ultra-low no-load power consumption below 0.5W. Its low leakage current, comprehensive protections, and long lifetime (over 40,000 hours) make it ideal for medical systems such as hemodialysis, sleep apnea devices, and medical displays.
MEAN WELL RPS30048C Medical Power Supply Specifications:
- Input Voltage: 90-264VAC, 47-63Hz
- Output Voltages: 12V, 15V, 24V, 27V, 48V
- Rated Power: 300W
- Efficiency: Up to 93%
- No Load Power Consumption: <0.5W
- Leakage Current: <150μA PCB type, <200μA enclosed type
- Protection: Short circuit, Overload, Over voltage, Over temperature
- Isolation Level: 2xMOPP (Primary-Secondary), 1xMOPP (Primary-Earth, Secondary-Earth)
- Dimensions: PCB type 127x76.2x35mm, Enclosed type 130x86x43mm
- Operating Temperature: -30°C to +70°C, Derating under low voltage conditions
- Standby Output: 5V@0.6A, Fan Supply: 12V@0.5A
- MTBF: 160,000 hours
- Certifications: UL, ANSI/AAMI ES60601-1, IEC60601-1, TUV EN60601-1, CSA, and others
Buy the Buy Mean Well RPS-300 Part Number RPS30048C Online
Purchase the reliable RPS-300 series medical power supply online today to guarantee safe, high-efficiency power delivery for healthcare applications. This compact, certified system offers multiple voltage options up to 48V, low no-load power consumption, and comprehensive protections. Perfect for medical devices such as dialysis machines, sleep apnea devices, and medical monitors. With long lifespan and UL, IEC standards compliance, it ensures safety and durability for critical healthcare environments. Order now for fast delivery and guaranteed quality engineered for medical use.
Order your Mean Well RPS-300 series 48V medical power supply today and ensure dependable, efficient power for your medical equipment.
Frequently Asked Questions
Where can I buy MEAN WELL RPS30048C?
You can click on the BUY or RFQ button to purchase RPS30048C from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part RPS30048C?
You can download the RPS30048C datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of RPS30048C?
MEAN WELL
