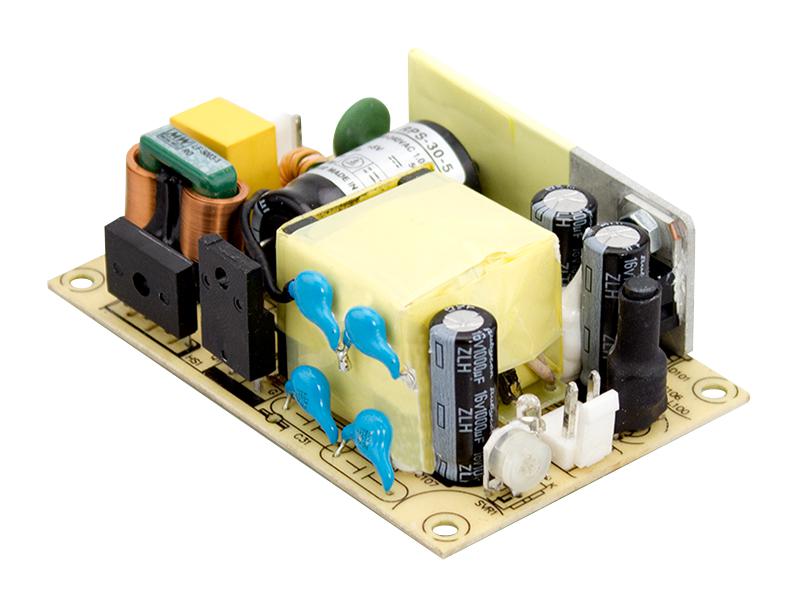

MEAN WELL RPS3015 Medical Power Supply
RPS-30 series is a highly reliable, medical-grade power supply delivering 30W with a compact 3x2 inch footprint, suitable for diverse healthcare equipment. It accepts 80-264VAC input, offers multiple output voltages from 3.3V to 48V, and achieves up to 91% efficiency while consuming less than 0.1W at no load. It conforms to international medical safety standards with low leakage current, suitable for BF applications with features like overvoltage, overload, and short circuit protection. Its design ensures reliable operation in medical environments, including hemodialysis machines, medical monitors, sleep apnea devices, and more.
MEAN WELL RPS3015 Medical Power Supply Specifications:
- Power Output: 30W
- Input Voltage: 80-264VAC
- Output Voltages: 3.3V, 5V, 7.5V, 12V, 15V, 24V, 48V
- Rated Current: 6A at 3.3V, 6A at 5V, 4A at 7.5V, 2.5A at 12V, 2A at 15V, 1.254A at 24V, 0.625A at 48V
- Efficiency: Up to 91%
- Leakage Current: <100A
- No Load Power Consumption: <0.1W
- Operating Temperature Range: -30°C to +70°C
- Dimensions: 76.2mm x 50.8mm x 24mm (3" x 2" x 0.945")
- Protection Features: Short Circuit, Overload, Over Voltage
- Isolation: 2xMOPP (Primary-Secondary)
- Certifications: Medical safety standards including IEC60601-1
- Operating Altitude: Up to 4000 meters
- Temperature Coefficient: 0.03%/°C
- Vibration Resistance: 10Hz-500Hz, 2G
- EMC Compliance: EN55011, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11, EN55024, EN60601-1-2
- MTBF: 628.7K hours (MIL-HDBK-217, 25°C)
Buy the MEAN WELL Series RPS-30 Medical Power Supply: RPS3015
Purchase the MEAN WELL RPS3015 medical power supply online today—designed for high reliability and efficiency. This 30W compact unit features multiple output voltages, low leakage current, and conforms to international medical safety standards like IEC60601-1. Suitable for patient contact systems such as hemodialysis machines, medical monitors, sleep apnea devices, and more. With protections including overvoltage, overload, and short circuit, and operating temperature from -30°C to 70°C, it ensures dependable performance in various medical settings. Enjoy easy online purchasing and fast delivery.
Get MEAN WELL RPS3015 today—built for precision and long-lasting durability in medical environments.
