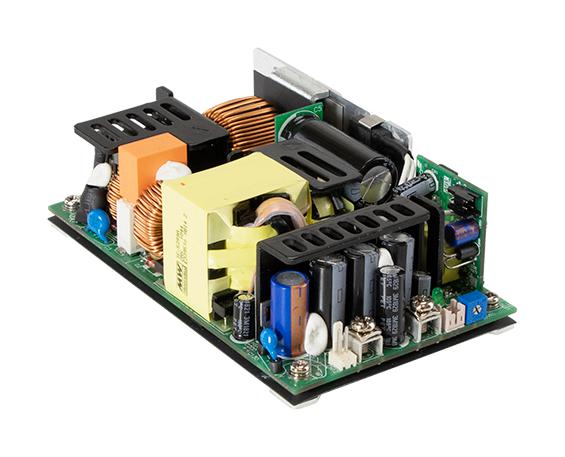

MEAN WELL RPS50036 medical power supply
RPS-500 is a high-reliability 500W medical power supply with a compact 5x3-inch footprint, capable of operating in various medical systems. It accepts 80-264VAC input and provides multiple output voltages between 12V and 48V, with efficiency up to 94% and low no-load power consumption below 0.5W. Certified for medical safety (2xMOPP) following ANSI/AAMI ES60601-1 and IEC60601-1 standards, it supports Class I and Class II systems, has protections for short circuit, overload, over voltage, and temperature, and offers options with built-in fans or enclosed casing.
MEAN WELL RPS50036 medical power supply Specifications:
- Input voltage: 80-264VAC
- Output voltages: 12V, 15V, 18V, 24V, 36V, 48V
- Rated power: 500W; Peak power: 550W (3 seconds)
- Efficiency: up to 94%
- No load power consumption: <0.5W
- Dimensions: 5" x 3" (127mm x 76.2mm)
- Operating temperature: -30°C to +70°C
- Protections: Short circuit, Overload, Over voltage, Over temperature
- Isolation: 2x MOPP primary-secondary
- Certification: UL, TUV, EN60601-1, IEC60601-1, ANSI/AAMI ES60601-1
- Additional features: LED power indicator, remote sense, Power Good/Fail signals
- Enclosure options: blank PCB, enclosed with fan on top or side
- Maximum operating altitude: 4000 meters
Buy the Mean Well RPS-500 – Reliable Medical Power Supply for Medical and Industrial Use
Purchase the reliable and efficient medical power supply online today. Designed for medical equipment with certifications following safety standards. Compact and lightweight, it offers multiple output voltages, high efficiency up to 94%, and low no-load power consumption. Suitable for applications like hemodialysis, sleep apnea devices, and medical monitors. Easy to install with various casing options, including enclosed models with fan options. Ensure your medical systems operate safely and efficiently with this certified power supply, available now for quick online ordering.
Get Mean Well RPS-500 today—built for precision, high efficiency, and long-lasting durability in medical and industrial applications.
Frequently Asked Questions
Where can I buy MEAN WELL RPS50036?
You can click on the BUY or RFQ button to purchase RPS50036 from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part RPS50036?
You can download the RPS50036 datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of RPS50036?
MEAN WELL
