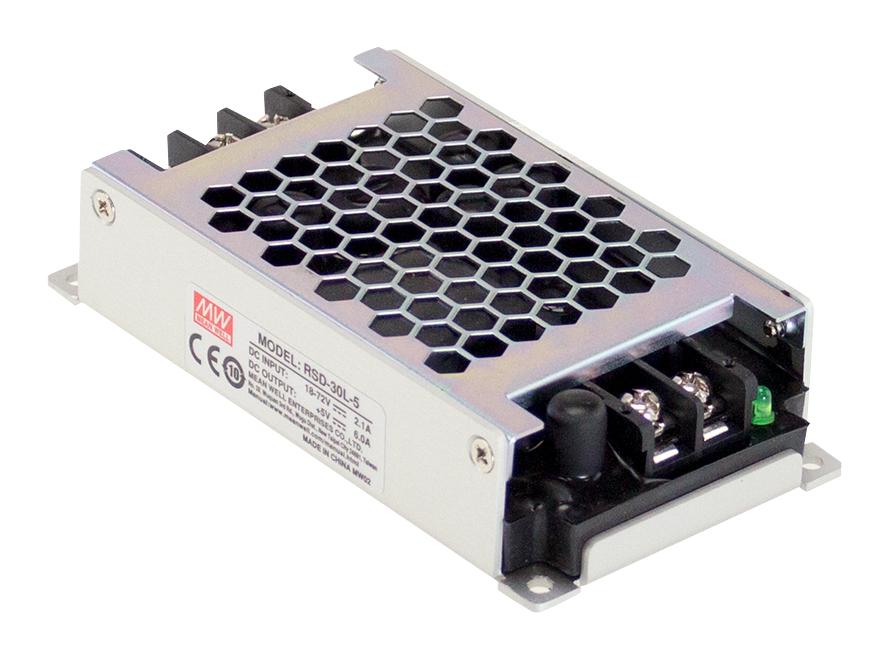

MEAN WELL RSD30H24 railway power converter
RSD-30 is a 30W enclosed type DC-DC converter designed for railway and transportation systems, compliant with EN50155 and IEC standards. It features a wide input range of 40~160V, multiple output voltages such as 3.3V, 5V, 12V, and 24V, and operates effectively in harsh environments with vibration, dust, and temperature extremes from -40°C to +70°C. Its compact profile (25mm low profile), reinforced isolation of 4000VDC, ripple noise as low as 50mVp-p, and built-in protections ensure reliability. Suitable for in-vehicle or infrastructure installations, it offers stable power with high efficiency (up to 91%), and demand-rated load protection for critical applications.
MEAN WELL RSD30H24 railway power converter Specifications:
- Power: 30W
- Input Voltage Range: 40~160VDC
- Output Voltages: 3.3V, 5V, 12V, 24V
- Rated Current: 6A at 3.3V, 25A at 12V, 1.25A at 24V, 6A at 5V
- Ripple & Noise: 50mVp-p to 70mVp-p
- Voltage Tolerance: ±2.0%
- Line Regulation: 0.2% to 0.5%
- Load Regulation: 0.2% to 0.5%
- Efficiency: up to 91%
- Operating Temperature: -40°C to +70°C
- Isolation: 4000VDC reinforced
- Dimensions: 113 x 60 x 25mm
- Vibration: IEC61373 compliant, 5G 10Hz-500Hz
- Protections: Short circuit, Overload, Over voltage, Temp
- Humidity: 5-95% RH non-condensing
- Mounting: Panel or DIN rail compatible
- Warranty: 3 years
Buy the Mean Well RSD-30 U–2013 Reliable Railway DC-DC Converter for Industrial Applications
Purchase the reliable railway power converter online today to ensure robust, efficient power support for transportation and industrial systems. Designed with a compact low profile of only 25mm, it features wide input voltage support from 40 to 160VDC, multiple output options, and extensive protections such as overvoltage, overload, and short circuit protection. Ideal for harsh environments, it operates between -40°C and +70°C, with high efficiency, reinforced isolation of 4000VDC, and compliance to strict standards including EN50155 and IEC. Purchase now to enhance your infrastructure with a durable, safe, and certified power solution—ideal for rail, tram, metro, and industrial applications.
Get Mean Well RSD-30 today—built for precision and long-lasting durability.
Frequently Asked Questions
Where can I buy MEAN WELL RSD30H24?
You can click on the BUY or RFQ button to purchase RSD30H24 from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part RSD30H24?
You can download the RSD30H24 datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of RSD30H24?
MEAN WELL
