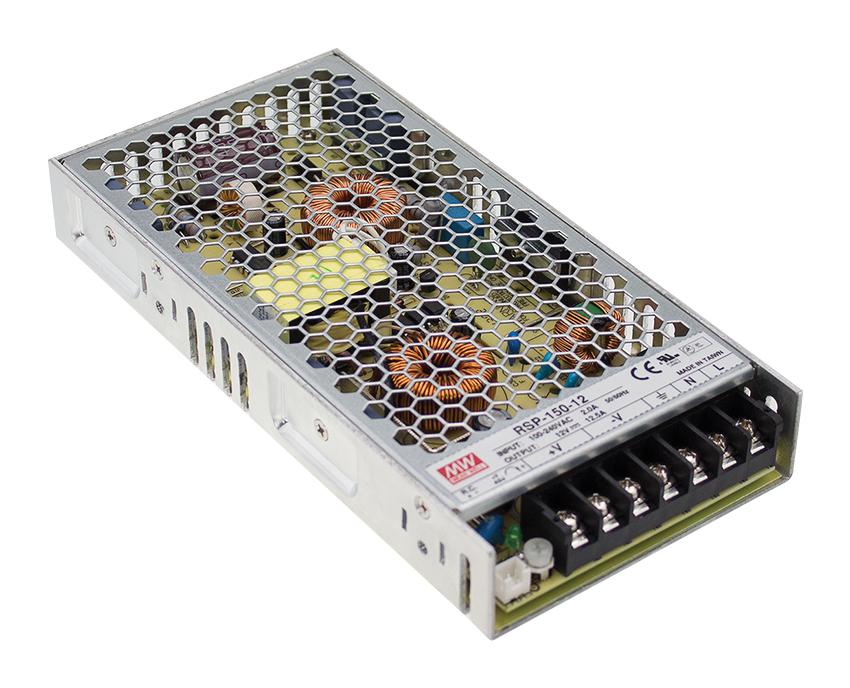

MEAN WELL RSP1505 Power Supply Module
The RSP-150 series from MW is a 150W single output power supply with a built-in PFC function, universal AC input, and protections against short circuit, overload, over voltage, and temperature. It features a compact 1U low profile design, remote ON-OFF control, and LED indicator for power status. Suitable for industrial applications, it offers high efficiency, reliable burn-in testing, and a wide working temperature range. Its robust construction and safety standards make it ideal for medical, automation, and control systems requiring stable power delivery.
MEAN WELL RSP1505 Power Supply Module Specifications:
- Input Voltage: 85~264VAC, 120~370VDC
- Output Power: 150W
- Output Voltage Range: 3.14~3.63V to 52.8~64.8V depending on model
- Rated Current: 30A at 3.3V, 30A at 5V, 20A at 7.5V, 125A at 12V, etc.
- Ripple & Noise: 100mVp-p to 250mVp-p depending on model
- Efficiency: 85% to 90% at full load
- Line Regulation: 0.5%
- Load Regulation: ±5% to ±10%
- Protections: Short circuit, Overload, Over voltage, Over temperature, Recovers automatically
- Cooling: Free air convection
- Dimensions: 199mm x 99mm x 30mm
- Operating Temperature: -30°C to +70°C (derating applied above 50°C)
- Working Humidity: 20% to 90% RH non-condensing
- Safety Standards: UL60950-1, EN61558-1, EN61558-2-16, TUV, CCC
Buy the Buy MW RSP-150 Series Part Number RSP1505 Online
Discover the MW RSP-150 power supply series, a reliable 150W single output unit with PFC, universal input, and comprehensive protections. Its compact design, high efficiency, and robust safety features make it perfect for demanding industrial, automation, and control applications. Easy to install with remote ON/OFF control and LED power indicator, this power supply guarantees stable and safe operation in a wide temperature range. Purchase online now to ensure your projects have dependable power at a competitive price.
Order your MW Series RSP-150 power supply today and ensure reliable, high-efficiency power for your industrial and control systems.
Frequently Asked Questions
Where can I buy MEAN WELL RSP1505?
You can click on the BUY or RFQ button to purchase RSP1505 from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part RSP1505?
You can download the RSP1505 datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of RSP1505?
MEAN WELL
