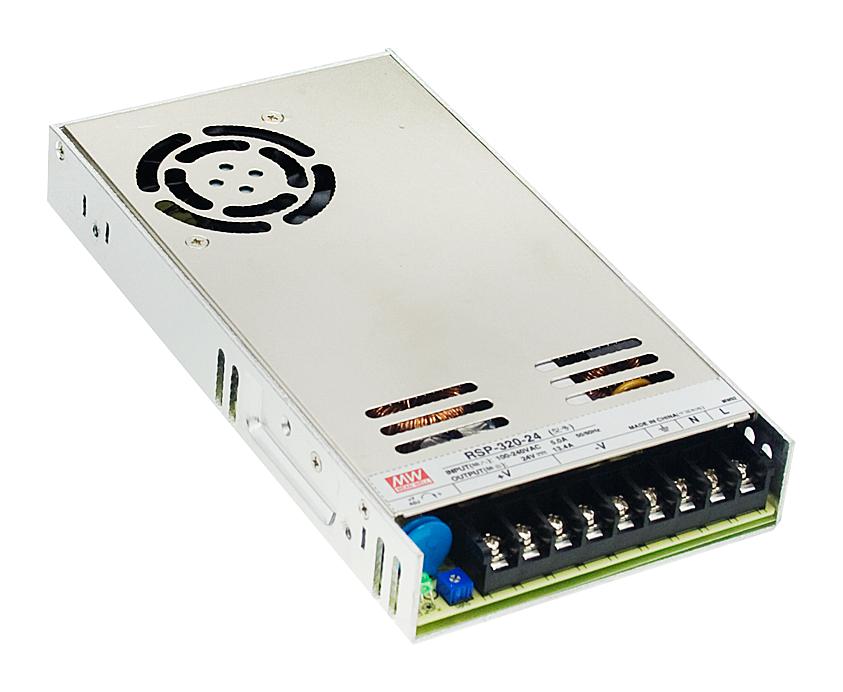

MEAN WELL RSP32024 Industrial Power Supply
The RSP-320 series is a 320W enclosed AC/DC power supply with a universal 88-264VAC input range, high efficiency up to 90%, built-in active PFC, and active fan cooling. Suitable for industrial automation, test equipment, laser machines, burn-in, and RF applications, it features protections against short circuits, overcurrent, overvoltage, and overtemperature. The series includes models with different output voltages such as 24V, 12V, and others, each with precise regulation, low ripple, and high reliability for demanding environments, ensuring consistent and safe power delivery.
MEAN WELL RSP32024 Industrial Power Supply Specifications:
- Input Voltage: 88~264VAC
- Output Power: 320W
- Dimensions: 215*115*30mm (L*W*H)
- Efficiency: Up to 90%
- Cooling Method: Built-in fan with speed control
- Protections: Short circuit, Overload, Over voltage, Over temperature
- Operating Temperature: -30°C to +70°C
- Humidity: 20~90% RH non-condensing
- Safety Standards: UL62368-1, EN62368-1, GB4943.1, AS/NZS 60950.1
- Dimensions: 215mm length, 115mm width, 30mm height
- Ripple & Noise: Max 150mVp-p for most models
- Built-in active PFC ensures high power factor
- Fan operation maintains thermal stability at 70°C
- Optional conformal coating available for harsh environments
- Certification: UL, TUV, CE, EAC, CCC, BSMI
- MTBF: 206.5K hours at 25°C
- Weight: Around 0.9 kg
Buy the Buy MEAN WELL RSP-320 Series 320W Power Supply Part Number RSP32024 Online
Purchase the MEAN WELL RSP-320 series 320W power supply online today for your industrial automation, laser, RF, test equipment, and burn-in facilities. This high-efficiency, reliable power source features active PFC, built-in fan cooling, and comprehensive protections including short circuit, overvoltage, overload, and overtemperature. With certifications like UL, CE, and EN62368-1, it guarantees safety and durability in demanding environments. Order now to ensure your projects operate with stable, clean power, backed by a 3-year warranty and prompt delivery.
Order your MEAN WELL RSP-320 series 320W power supply today and ensure reliable performance for your industrial automation and test needs.
Frequently Asked Questions
Where can I buy MEAN WELL RSP32024?
You can click on the BUY or RFQ button to purchase RSP32024 from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part RSP32024?
You can download the RSP32024 datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of RSP32024?
MEAN WELL
