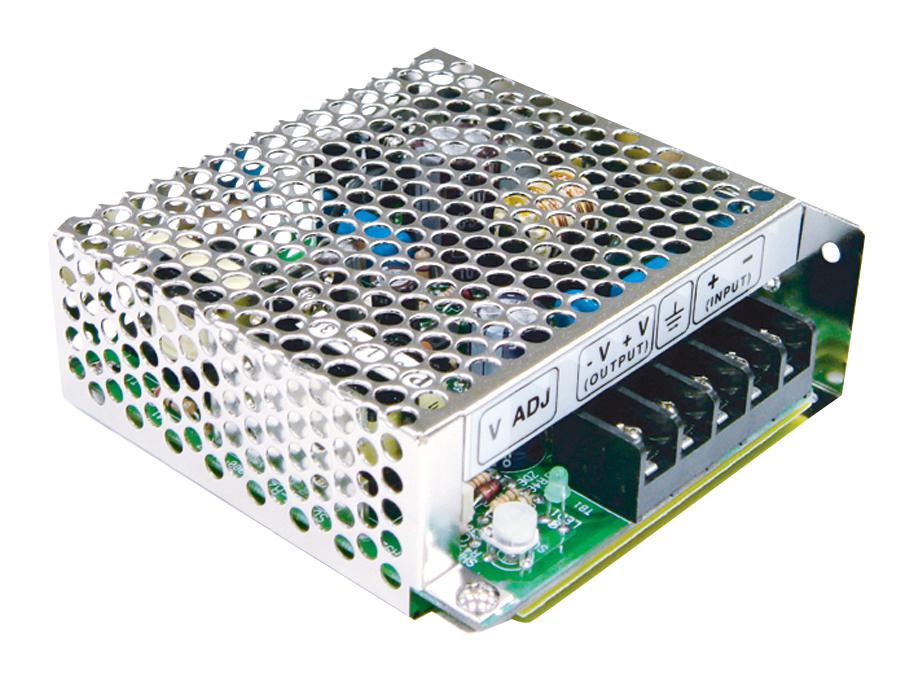

MEAN WELL SD25C5 DC-DC Converter
This 25W single output DC-DC converter series offers wide input voltage ranges from 4.5V to 72V, with protections against short circuits, overloads, and overvoltage. Its high isolation of 1500VAC ensures safety and reliability. Features include low ripple noise, built-in EMI filters, fixed switching frequency of 88KHz, and a high efficiency of up to 81%. Designed for industrial applications, it operates reliably between -20°C and +85°C, with robust safety standards and a 2-year warranty, making it ideal for power supply modules, automation, and control systems.
MEAN WELL SD25C5 DC-DC Converter Specifications:
- Input Voltage Range: 4.5~72VDC
- Output Power: 25W
- Output Voltage Options: 5V, 12V, 24V
- Rated Current: 5A (5V), 4.1A (12V), 2.2A (24V)
- Ripple and Noise: Max 10mVp-p (5V), Max 420mVp-p (12V), Max 150mVp-p (24V)
- Efficiency: Up to 81%
- Isolation Voltage: 1500VAC
- Protections: Short circuit, Overload, Over voltage
- Operating Temperature: -20°C to +85°C
- Storage Temperature: -20°C to +85°C
- Vibration Resistance: 40 ~ 500Hz, 2G
- Dimensions: 99mm x 97mm x 36mm
- MTBF: Minimum 374.3K hours
- Compliance Standards: EN55022, EN61000-4-2,3,4,6,8, EN55024
- Safety: Design complies with LVD standards, with withstand voltages of 1.5kVAC (OIP), 2kVAC (P-FG), 0.5kVAC (OIP-FG)
- Humidity: 20-90% RH non-condensing
Buy the Buy Industrial Power Supply Part Number SD25C5 Online
Purchase the SD25C5 single output DC-DC converter online today to ensure your industrial power systems have a reliable, high-efficiency power source. Featuring wide input voltage ranges from 4.5V to 72V, 1500VAC isolation, low ripple noise, and comprehensive protections including short circuit, overload, and overvoltage. Its robust construction operates reliably between -20°C and +85°C, making it suitable for automation, control systems, and manufacturing equipment. Enjoy quick delivery, warranty support, and seamless integration by ordering directly online now.
Buy the SD25C5 series DC-DC converter now and experience high efficiency, robust safety features, and reliable power conversion for industrial applications.
Frequently Asked Questions
Where can I buy MEAN WELL SD25C5?
You can click on the BUY or RFQ button to purchase SD25C5 from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part SD25C5?
You can download the SD25C5 datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of SD25C5?
MEAN WELL
