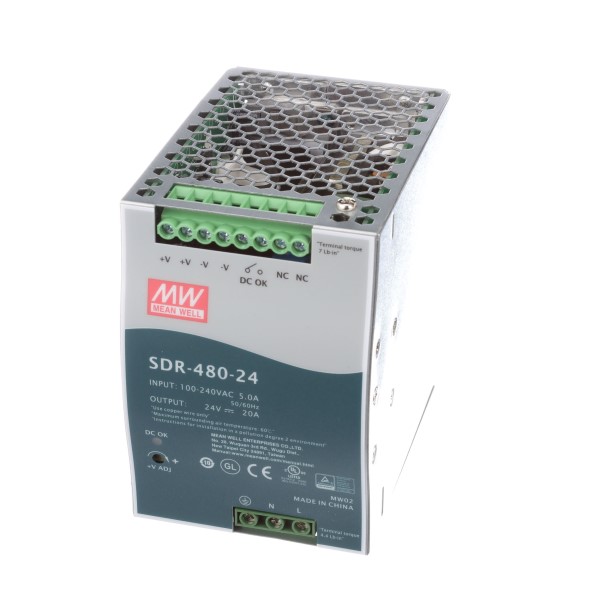

MEAN WELL SDR48024 480W DIN Rail Power Supply
The MEAN WELL SDR-480-24 is a robust and efficient 480W single-output DIN rail power supply designed for industrial applications. It incorporates a power factor correction (PFC) function, resulting in a power factor greater than 0.94. Key features include high efficiency (up to 94%), a wide input voltage range, and comprehensive protection mechanisms such as short circuit, overload, over voltage, and over temperature protection. The SDR-480-24 is suitable for a variety of industrial control equipment and automation systems, providing a stable and reliable power supply solution. It is also UL 508 approved and compliant with various EMC standards.
MEAN WELL SDR48024 480W DIN Rail Power Supply Specifications:
- DC Voltage: 24V
- Rated Current: 20A
- Current Range: 0 ~ 20A
- Rated Power: 480W
- Peak Current: 30A
- Peak Power: 720W (3sec.)
- Voltage Adj. Range: 24 ~ 28V
- Line Regulation: ±0.5%
- Load Regulation: ±0.5%
- Setup, Rise Time: 1500ms, 150ms/230VAC 3000ms, 150ms/115VAC at full load
- Hold Up Time (Typ.): 14ms/230VAC at full load
- Voltage Range: 90 ~ 264VAC 127 ~ 370VDC
- Frequency Range: 47 ~ 63Hz
- Efficiency (Typ.): 94%
- Power Factor (Typ.): 0.94/230VAC 0.99/115VAC at full load
- Ripple & Noise (max.): 100mVp-p
- Input Inrush Current (Typ.): 40A/115VAC 80A/230VAC
- Leakage Current: <0.8mA / 240VAC
- Overload: Normally works within 110 ~ 150% rated output power for more than 3 seconds and then shut down o/p voltage with auto-recovery. >150% rated power, constant current limiting with auto-recovery within 2 seconds and may cause to shut down if over 2 seconds
- Over Voltage: 56 ~ 65V
- Over Temperature: Shut down o/p voltage, recovers automatically after temperature goes down
- DC OK Relay Contact Ratings (max.): 60Vdc/0.3A, 30Vdc/1A, 30Vac/0.5A resistive load
- Working Temp.: -25 ~ +70 ℃ (Refer to "Derating Curve")
- Working Humidity: 20 ~ 95% RH non-condensing
- Storage Temp., Humidity: -40 ~ +85 ℃, 10 ~ 95% RH
- Temp. Coefficient: ± ℃
- Vibration: Component:10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes; Mounting: Compliance to IEC60068-2-6
- MTBF: 112.9K hrs min. MIL-HDBK-217F (25 ℃)
- Dimension: 85.5*125.2*128.5mm (W*H*D)
- Packing: 1.6Kg; 8pcs/13.8Kg/0.9CUFT
- Safety Standards: UL508, TUV EN60950-1 approved ; (meet EN60204-1)
- Withstand Voltage: I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC O/P-DC OK:0.5KVAC
- Isolation Resistance: I/P-O/P, I/P-FG, O/P-FG:>100M Ohms / 500VDC / 25 ℃/ 70% RH
- EMC Emission: Compliance to EN55011, EN55032 (CISPR32), EN61204-3 Class B, EN61000-3-2,-3
- EMC Immunity: Compliance to EN61000-4-2,3,4,5,6,8,11, EN55024, EN61000-6-2 (EN50082-2), EN61204-3, heavy industry level, criteria A, SEMI F47, GL approved
