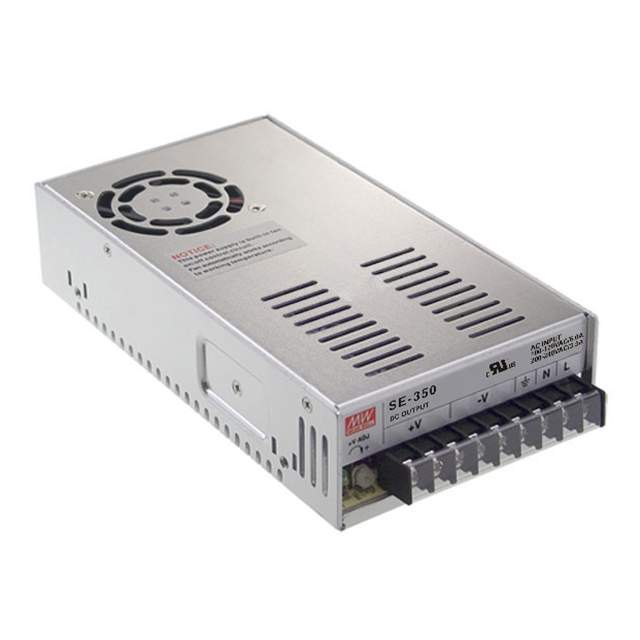

MEAN WELL SE35036 Single Output Switching Power Supply
The MEAN WELL SE-350-36 is a versatile 350W single output switching power supply designed for a wide range of industrial applications. It boasts a selectable AC input range, providing flexibility in different operating environments. Comprehensive protection features, including short circuit, overload, over voltage, and over temperature protection, ensure system reliability and safety. The built-in DC fan provides efficient cooling, while the fan ON-OFF control allows for customized thermal management. A constant current limiting circuit and 100% full load burn-in testing guarantee consistent performance and longevity. The SE-350-36 is a cost-effective and reliable power solution for various electronic devices and systems.
MEAN WELL SE35036 Single Output Switching Power Supply Specifications:
- Model: SE-350 series
- DC Voltage: 254 ~ 370VDC
- Rated Current: 7A/115VAC, 4A/230VAC
- Current Range: 0 ~ 60A
- Rated Power: 345W
- Output Voltage Adj. Range: 3.8 ~ 4.6V
- Line Regulation: ±2.0%
- Load Regulation: ±1.0%
- Setup, Rise Time: 20ms/230VAC
- Hold Up Time: 1000ms
- Voltage Range: 90 ~ 132VAC / 180 ~ 264VAC
- Frequency Range: 47 ~ 63Hz
- Efficiency: 74%
- Input Inrush Current: 40A/115VAC, 60A/230VAC
- Leakage Current: <3.5mA / 240VAC
- Over Load: 105 ~ 135% rated output power
- Over Voltage: 3.8 ~ 4.6V
- Safety: UL60950-1 approved
- Withstand Voltage: I/P-O/P:3KVAC, I/P-FG:2KVAC, O/P-FG:0.5KVAC
- Isolation Resistance: 100M Ohms/500VDC
- Working Temp: -20 ~ +60℃
- Working Humidity: 20 ~ 90% RH non-condensing
- Storage Temp, Humidity: -20 ~ +85℃, 10 ~ 95% RH
- Ripple & Noise: 150mVp-p
- Voltage Tolerance: ±3.0%
- Protection: Constant current limiting
Buy the SE-350-36 MEAN WELL Single Output Switching Power Supply | myMectronic
Purchase the MEAN WELL SE-350-36 securely and reliably through our online store.
Buy Now
Frequently Asked Questions
Where can I buy MEAN WELL SE35036?
You can click on the BUY or RFQ button to purchase SE35036 from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part SE35036?
You can download the SE35036 datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of SE35036?
MEAN WELL
