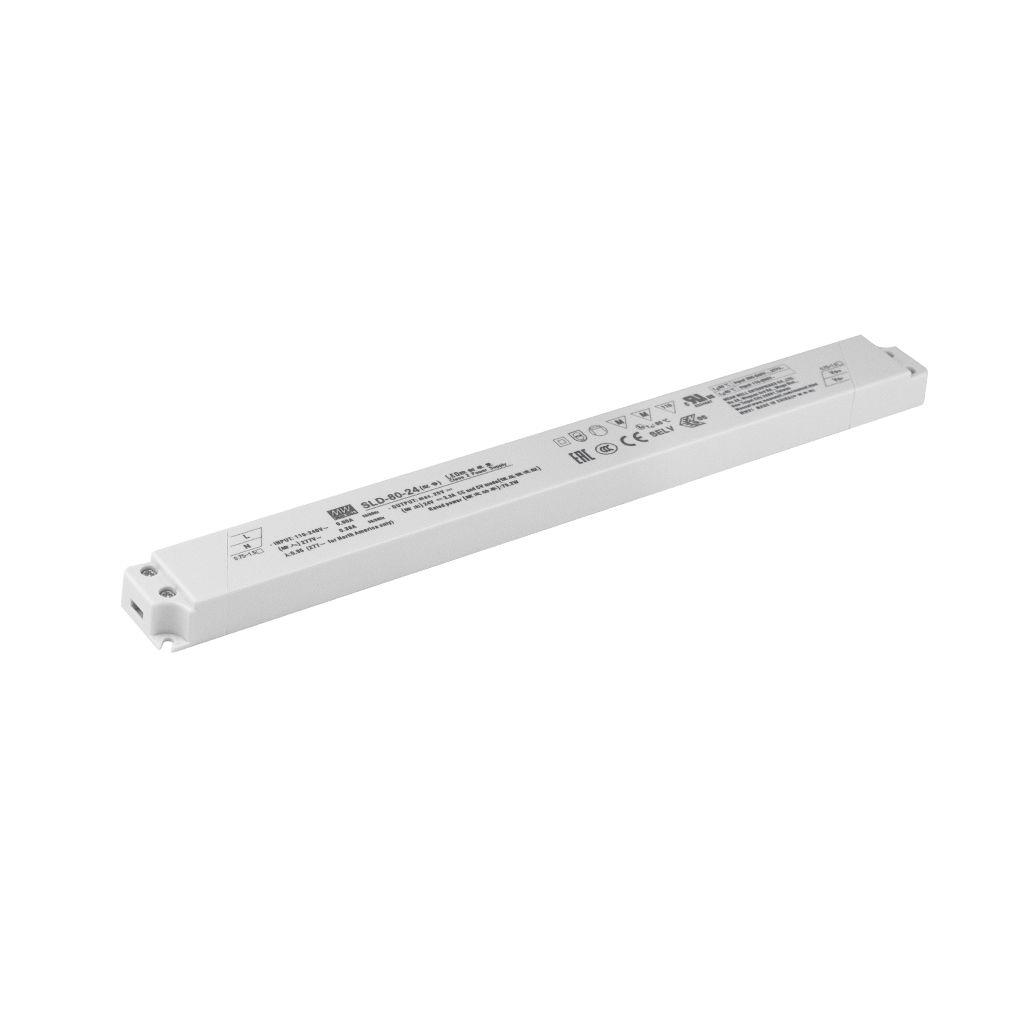

MEAN WELL SLD8024 80W LED Driver
The SLD-80 series is an 80W AC/DC LED driver featuring dual modes of constant voltage and constant current output. It operates from 110～305V AC and offers models with different rated voltage ranging between 12V and 56V. Thanks to the high efficiency up to 92%, with the fanless design, the entire series is able to operate for -20℃ ~ +90℃ case temperature under free air convection. The SLD-80 design with low profile and linear housing which is good for signage and linear luminaire applications.
MEAN WELL SLD8024 80W LED Driver Specifications:
- Rated Output Voltage: 24V
- Rated Wattage: 80W
- Series Name: SLD-80
- Input Voltage Range: 110-305VAC
- Input Frequency: 47-63Hz
- Power Factor: ≥0.97 (115VAC), ≥0.95 (230VAC), ≥0.92 (277VAC)
- Efficiency: Up to 92%
- AC Current: 0.9A / 115VAC, 0.45A / 230VAC, 0.38A/277VAC
- Inrush Current: 50A (Cold Start)
- Leakage Current: <0.25mA / 277VAC
- Withstand Voltage: 3.75KVAC (I/P-O/P)
- Isolation Resistance: 100M Ohms / 500VDC
- Total Harmonic Distortion: <10%
- DC Voltage: 12V - 56V
- Rated Current: 3.3A
- Line Regulation: ±4.0%
- Load Regulation: ±3.0%
- Setup, Rise Time: 10ms
- Hold Up Time: 500ms
- Ripple & Noise: 155mVp-p
- Voltage Tolerance: ±0.5%
- Constant Current Region: 14-17V
- Over Current Protection: Hiccup mode
- Safety Standards: UL8750, CSA C22.2 No. 250.13-12, ENEC EN61347-1, EN61347-2-13, EN62384, EAC TP TC 004, GB19510.1, GB19510.14
- Working Temperature: -20 ~ +90℃
- Working Humidity: 20 ~ 95% RH non-condensing
- Storage Temperature: -40 ~ +80℃
- Temp. Coefficient: ±0.03%/℃ (0 ~ 50℃)
- Vibration: 10 ~ 500Hz, 2G
- MTBF: 867.33K hrs (Telcordia SR-332), 260.96K hrs (MIL-HDBK-217F)
