MEAN WELL TDR24048 industrial power supply
The TDR-24048 is a 240W industrial DIN rail power supply designed for automation and control systems. It features a slim 63mm width, high efficiency of 92%, and a broad input range of 340 to 550VAC, with dual-phase operation possible. The unit includes passive PFC to meet EN61000-3-2 standards, extensive protections such as short circuit, overload, over voltage, and over temperature, and operates reliably from -30°C to 70°C. Certified under UL61010 and EN standards, it ensures safe, stable power for industrial control and semiconductor fabrication equipment, making it ideal for factory automation and electro-mechanical applications.
MEAN WELL TDR24048 industrial power supply Specifications:
- Power Rating: 240W
- Output Voltage: 48V DC
- Rated Current: 5A
- Ripple & Noise: 120mVp-p max
- Input Voltage Range: 340-550VAC (Dual phase operation possible)
- Efficiency: 92%
- Line Regulation: ±0.5%
- Load Regulation: ±1.0%
- Temperature Range: -30°C to +70°C
- Protection: Short circuit, Overload, Over voltage, Over temperature
- Dimensions: 113.5mm (W) x 63mm (H) x 125.2mm (D)
- Fuse Rating: 30VDC/1A, 30VAC/0.5A resistive load
- Certifications: UL61010-1, UL61010-2-201, EN61558-1, EN61558-2-16, EAC TP TC 004
- Operating Altitude: Up to 5000 meters
- Cooling Method: Free air convection

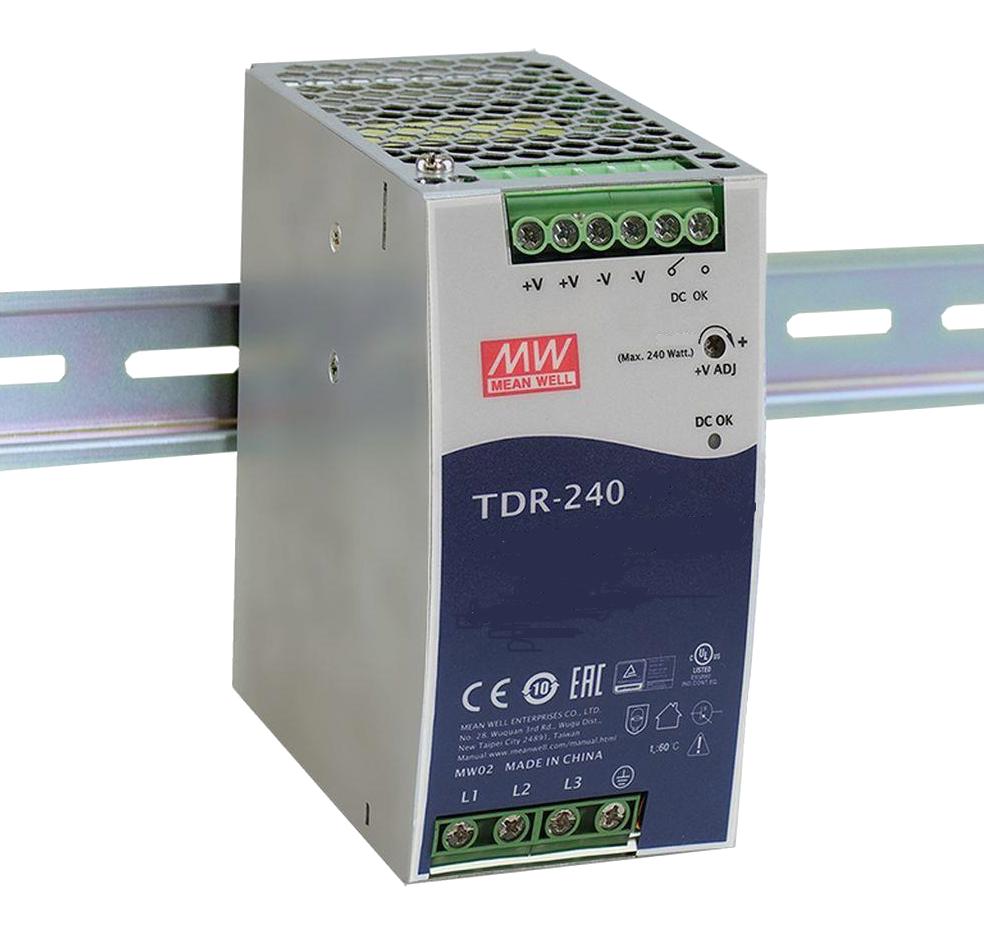

Buy the Mean Well 240W Slim Three Phase Industrial DIN Rail with PFC Function TDR-240 series
Purchase the Mean Well TDR-24048 power supply online today to ensure your automation systems operate with high efficiency and reliable power. Featuring broad input voltage compatibility from 340 to 550VAC, this 240W unit supports dual-phase operation, making it perfect for industrial environments. Its slim design of just 63mm wide allows efficient space utilization inside control panels. Equipped with extensive protections including short circuit, overload, over voltage, and over temperature, the TDR-24048 is certified for safety standards, ensuring dependable performance for factory automation and manufacturing applications. Order now and optimize your power management.
Order your Mean Well Series TDR-24048 power supply today and ensure reliable, efficient power for industrial automation and control projects.
Frequently Asked Questions
Where can I buy MEAN WELL TDR24048?
You can click on the BUY or RFQ button to purchase TDR24048 from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part TDR24048?
You can download the TDR24048 datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of TDR24048?
MEAN WELL
