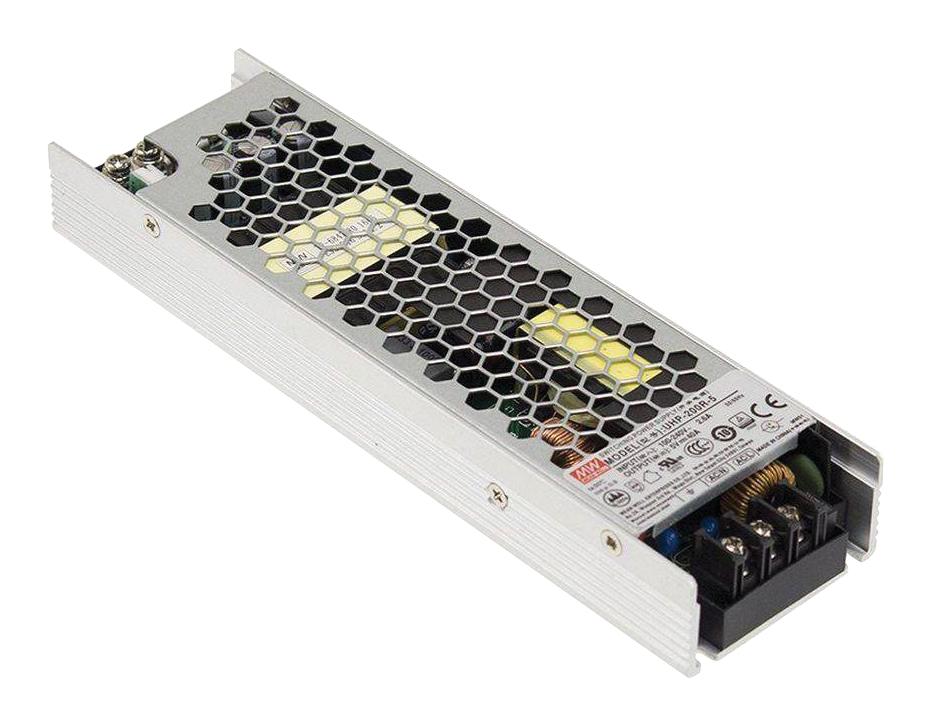

MEAN WELL UHP20042 Industrial Power Supply
The UHP-200 series is a high-performance 200W slim power supply designed for industrial automation and control applications. It features a low profile of 26mm, full range 90~264VAC input, and multiple output voltages from 3.3V to 48V. With efficiency up to 94%, fanless convection cooling, and comprehensive protections including overvoltage, overcurrent, and temperature shutdown, it operates reliably from -30°C to 70°C. Certified to international safety standards, the series is ideal for mechanical, electrical, and electronic equipment in harsh environments, offering durability, safety, and versatile power solutions.
MEAN WELL UHP20042 Industrial Power Supply Specifications:
- Power Output: 200W
- Input Voltage: 90~264VAC, 47~63Hz
- Output Voltages: 3.3V, 4.2V, 5V, 12V, 15V, 24V, 36V, 48V
- Max Current: 40A (3.3V, 4.2V, 5V), 16.7A (12V), 13.44A (15V), 8.44A (24V), 5.6A (36V), 4.24A (48V)
- Efficiency: Up to 94%
- Operating Temperature: -30°C to 70°C
- Protection Functions: Short circuit, overload, overvoltage, over temperature
- Dimension: 194 x 55 x 26 mm
- Certification: UL60950-1, TUV EN60950-1, EN60335-1, GB4943
- Vibration: 5G, 10-500Hz
- MTBF: 257,000 hours
Buy the Mean Well Series UHP Power Supply: UHP-200
Purchase the Mean Well UHP-200 series power supply online now and enjoy superior performance for industrial automation, control systems, and electronic equipment. This slim, 200W fanless power supply with PFC features high efficiency up to 94%, wide input voltage range, and full protection against overvoltage, overcurrent, and temperature. Its robust design ensures safe, reliable operation from -30°C to 70°C, making it ideal for mechanical and electrical machinery in demanding industrial and household applications. Order now for quick delivery and long-lasting durability.
Get Mean Well UHP-200 series power supply today—designed for industrial control, high efficiency, and reliable operation in harsh environments.
Frequently Asked Questions
Where can I buy MEAN WELL UHP20042?
You can click on the BUY or RFQ button to purchase UHP20042 from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part UHP20042?
You can download the UHP20042 datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of UHP20042?
MEAN WELL
