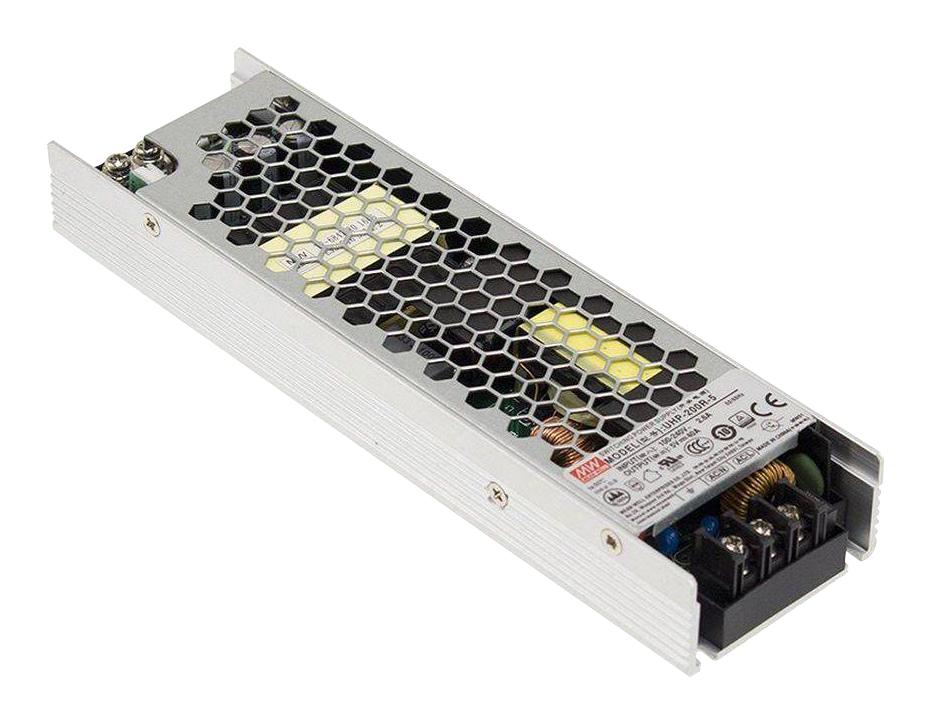

MEAN WELL UHP200R12 Power Supply
The UHP-200 series is a compact, 200W slim power supply designed for industrial automation, control systems, and electronic equipment. It features a low profile of 26mm, fanless convection cooling, high efficiency up to 94%, and robust protection including overload, short circuit, overvoltage, and over temperature. With a wide input range of 90-264VAC, it supports operating temperatures from -30°C to +70°C, and is compliant with international safety standards such as UL, TUV, and EN. Ideal for applications requiring reliable, high-performance power, with built-in active PFC, high vibration resistance, and a lifespan exceeding 257,000 hours.
MEAN WELL UHP200R12 Power Supply Specifications:
- Power Rating: 200W
- Input Voltage: 90~264VAC
- Output Voltages: 3.3V, 4.2V, 5V, 12V, 15V, 24V, 36V, 48V
- Rated Current: 40A (3.3V), 40A (4.2V), 40A (5V), 16.7A (12V), 13.44A (15V), 8.44A (24V), 5.6A (36V), 4.24A (48V)
- Efficiency: Up to 94%
- Ripple & Noise: 150-300mVp-p depending on voltage output
- Output Voltage Tolerance: ±2% to ±10% depending on model
- Protection: Short circuit, Overload, Overvoltage, Over temperature
- Operating Temperature: -30°C to +70°C
- Altitude: Up to 5000m
- Safety Standards: UL60950-1, EN60950-1, EN60335-1, GB4943, BSMI CNS 14336-1
- MTBF: 257,000 hours at 25°C
- Dimensions: 194mm x 55mm x 26mm
- Vibration Resistance: 5G between 10Hz and 500Hz
- Humidity: 20-90% RH non-condensing
Buy the Buy Mean Well UHP-200 Series Power Supply Part Number UHP200R12 Online
Purchase the reliable and efficient Mean Well UHP-200R12 power supply online today. Engineered for industrial automation, control systems, and electronic equipment with a slim 26mm profile, it features high efficiency up to 94%, robust protections, wide input voltage, and operation in extreme temperatures from -30°C to +70°C. Its fanless convection design ensures silent operation, while its durable construction provides over 257,000 hours of MTBF. Secure your industrial power needs easily by ordering online now for prompt delivery and expert support.
Get Mean Well UHP-200R12 today—built for industrial automation with high efficiency and robust protections for reliable operation.
Frequently Asked Questions
Where can I buy MEAN WELL UHP200R12?
You can click on the BUY or RFQ button to purchase UHP200R12 from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part UHP200R12?
You can download the UHP200R12 datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of UHP200R12?
MEAN WELL
