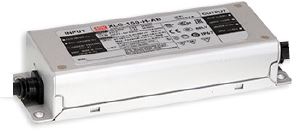

MEAN WELL XLG150HA 150W LED Driver
The XLG-150 series is a 150W LED AC/DC driver featuring constant power mode. It operates from 100~305VAC and offers models with different rated current ranging between 700mA and 12500mA. Thanks to the high efficiency (up to 93%), with the fanless design, the entire series is able to operate for -40℃~+90℃ case temperature under free air convection. The metal housing and IP67 ingress protection allow this series to fit both indoor and outdoor applications. The XLG-150 series complies with safety regulations and offers innovative environment-adaptive capabilities for reliable lighting in various environments.
MEAN WELL XLG150HA 150W LED Driver Specifications:
- Model: XLG-150
- Output Voltage Range: 100 ~ 305VAC / 142 ~ 431VDC
- Frequency Range: 47 ~ 63Hz
- Power Factor: PF≧0.97/115VAC, PF≧0.95/230VAC, PF≧0.92/277VAC@full load
- Efficiency: 91.5% (typical)
- AC Current: 1.8A / 115VAC, 1.0A / 230VAC, 0.8A/277VAC
- Input Leakage Current: 0.75mA / 277VAC
- Input Inrush Current: Cold Start 50A (twidth=500 s measured at 50% Ipeak) at 230VAC
- Working Temperature: -40 ~ +90℃
- Working Humidity: 20 ~ 95% RH non-condensing
- Storage Temperature & Humidity: -40 ~ +90℃, 10 ~ 95% RH
- Temp. Coefficient: ±0.06%/℃(0 ~ 60℃)
- Vibration: 10 ~ 500Hz, 5G 12min./1cycle
- MTBF: 712.17K hrs min. (Telcordia SR-332), 213.3Khrs min. (MIL-HDBK-217F)
- Dimension: 180*63*35.5mm (L*W*H)
- Weight: 0.8Kg
- Packing: 16pcs / 13.4Kg /0.67CUFT
- Over Temperature Protection: Shut down output voltage, recovers automatically
- Over Voltage Protection: Shut down output voltage, re-power on to recover
- Short Circuit Protection: Hiccup mode, recovers automatically
- Withstand Voltage: I/P-O/P:4.2KVAC, I/P-FG:2.1KVAC, O/P-FG:1.5KVAC
- Isolation Resistance: 100M Ohms / 500VDC / 25℃/ 70% RH
- Total Harmonic Distortion: <10% @load≥50%/115VC,230VAC; @load≥75%/277VAC
- DC Voltage: 12V / 24V (model dependent)
- Rated Current: 12.5A (12V model), 6.25A (24V model)
- Rated Power: 150W
- Line Regulation: ±3.0% (12V model), ±2.0% (24V model)
- Load Regulation: ±0.5% (12V model), ±0.5% (24V model)
- Setup Time: ±2%
- Constant Current Limiting: Adjustable for A-Type only
- Safety Standards: UL8750, UL879, CSA C22.2 No. 250.13-12, ENEC EN61347-1, EN61347-2-13, GB19510.1, GB19510.14, EAC TP TC 004, IP67
