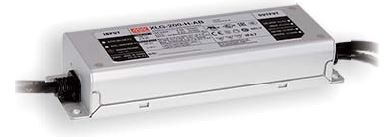

MEAN WELL XLG200HA 200W LED Driver
The MEAN WELL XLG-200 series is a 200W LED AC/DC driver featuring constant power technology. Operating from 100-305VAC, it offers models with different rated currents and high efficiency up to 94%. The fanless design and IP67 ingress protection make it suitable for both indoor and outdoor applications. It meets international safety regulations and offers dimming functionality, making it a versatile solution for diverse lighting environments. The XLG-200 is designed to reliably power LEDs in various applications worldwide.
MEAN WELL XLG200HA 200W LED Driver Specifications:
- Output Power: 200W
- Input Voltage Range: 100~305VAC
- Frequency Range: 47 ~ 63Hz
- Power Factor: 0.95 (230VAC)
- Efficiency: Up to 94%
- Surge Protection: 6K V/4K V (10K V/6K V option)
- Dimming Function: 3-in-1 dimming (0~10Vdc, PWM, Resistance)
- IP Rating: IP67
- Working Temperature: -40 ~ +90℃
- Working Humidity: 20 ~ 95% RH non-condensing
- Storage Temperature & Humidity: -40 ~ +90℃, 10 ~ 95% RH
- Lifetime: >50,000 hours
- Dimension: 35.5mm (L*W*H)
- Weight: 0.85Kg
- Safety Standards: UL8750, ENEC EN61347-1, EN61347-2-13, CSA C22.2 No. 250.13-12, GB19510.1, EAC TP TC 004
- Over Temperature Protection: Shut down output voltage, recovers automatically
- Over Voltage Protection: Shut down output voltage, re-power on to recover
- Short Circuit Protection: Hiccup mode, recovers automatically
- Isolation Voltage: 4.2KVAC (I/P-O/P)
- Isolation Resistance: 100M Ohms / 500VDC / 25℃ / 70% RH
- Ripple & Noise: ≤550μVp-p (20MHz)
- Voltage Tolerance: ±2.0%
- Line Regulation: ±0.5%
- Load Regulation: ±1%
- Hold Up Time: ≥92%
- Constant Current Region: 13.5 ~ 18V (for 12V models)
- Max. Case Temperature: Tcase=+90℃
