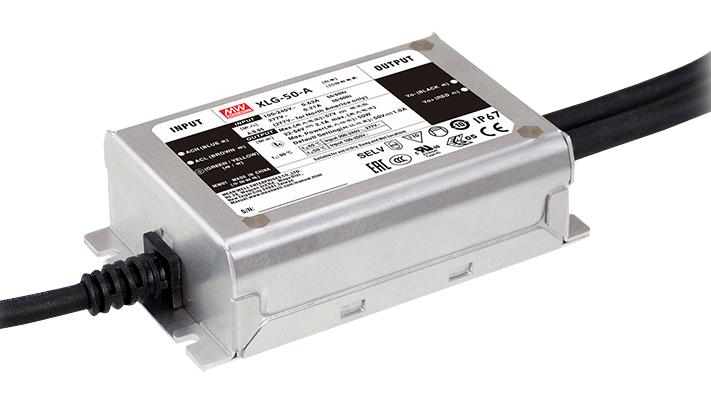

MEAN WELL XLG50A LED Driver
The XLG-50 series is a 50W LED driver designed for indoor and outdoor lighting applications, featuring constant power output, high efficiency up to 90%, and wide operating temperature from -40°C to +90°C. Its metal housing with IP67 rating ensures durability and ingress protection, suitable for use in street, architectural, bay, and flood lighting. Equipped with functions like output adjustable via potentiometer, 3-in-1 dimming (0-10V, PWM, resistance), and built-in active PFC, it delivers reliable performance with a lifetime exceeding 50,000 hours and a 5-year warranty.
MEAN WELL XLG50A LED Driver Specifications:
- Rated Power: 50W
- Input Voltage Range: 100~305VAC
- Output Voltage: 22~54V (Constant Current Region)
- Rated Current: 1A
- Current Ripple: 5.0% max.
- Open Circuit Voltage: 57V
- Input Frequency: 47~63Hz
- Efficiency: Up to 90%
- THD: < 10%
- Standby Power Consumption: <0.5W
- Operating Temperature: -40°C to +90°C
- Storage Temperature: -40°C to +80°C
- Certifications: UL, IEC, EN55015, EN61000-3-2, EN61000-3-3
- Vibration Resistance: 10~500Hz, 5G
- Dimensions: 105 x 63 x 30 mm
- Protection: Short circuit, Over current, Over temperature, Input over voltage
- Waterproof Rating: IP67
- Lifetime: >50,000 hours
- Housing Material: Metal
Buy the Mean Well Series XLG-50 LED Driver: XLG50A
Enhance your lighting system with the reliable and efficient XLG-50 series LED driver. Designed for durability and performance, this 50W driver features adjustable output, multiple dimming options, and an IP67 waterproof rating. Whether for street, architectural, or flood lighting, it offers high efficiency up to 90%, a lifetime exceeding 50,000 hours, and robust protection features. Easy to install and fully compliant with safety standards, order online today to ensure your lighting projects are powered with quality and reliability.
Order your Mean Well Series XLG-50 LED driver today and give your outdoor and indoor lighting projects the dependable quality they deserve.
Frequently Asked Questions
Where can I buy MEAN WELL XLG50A?
You can click on the BUY or RFQ button to purchase XLG50A from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part XLG50A?
You can download the XLG50A datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of XLG50A?
MEAN WELL
