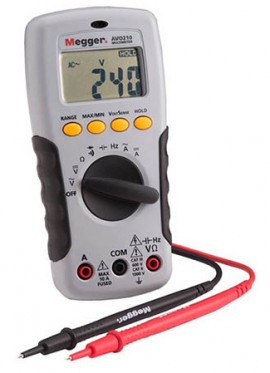

MEGGER AVO210 Datasheet & Stock

Megger AVO210 Offers

Features


2000 count digital display
1000 V DC / 750 V AC ranges
10 A AC / DC ranges
Resistance, frequency and capacitance ranges
Non-contact voltage detector
CAT III 600 V



Auto-ranging
When first selected, all functions are auto-ranging. A range button on the AVO210 allows multiple manual range selection on each function. The instrument has a MIN MAX function that allows the user to switch between minimum and maximum measurements. The display does not have to be continually monitored to capture a momentary increase or fall in readings.
Data Hold
This function allows a displayed result to be frozen which avoids having to remember a measurement value. The hold function can be nested within the MIN MAX feature which stops the AVO210 continuously updating the minimum and maximum values.
Voltage Measurements
Both AC and DC voltage measurements up to 750 V and 1000 V respectively are possible with the AVO210.
Current Measurements
A separate fused terminal is provided for current measurements up to 10 A for both AC and DC.
Continuity / diode testing
The continuity function features a buzzer and provides the user both optical and audible indication of identifying and confirming continuity between two points. This function also allows forward and reverse bias testing of diode and semiconductor junctions.
Voltsense function
The AVO210 has a built in non-contact voltage sensor fitted in the top of the instrument that is activated by the Voltsense button.
Resistance, capacitance and frequency
Resistance can be measured directly on the ohms range from 0 to 20 MΩ with capacitance measurements from 0 to 2.000 mF. In addition, frequency measurements from 0 to 20 MHz are possible.
