Features

Up to 240 A
Bluetooth® headset for audible pass/fail testing against adjustable limits
Battery powered
Handheld, lightweight, weighing only 2.2 lbs (1 kg)
Safe test - DualGround™
Auto range from 1 microohm to 1000 milliohms
Ultra capacitor technology (patent pending)


Applications

Circuit breaking testing
Testing of bus-bar
Switches
Disconnecting devices
Safety ground connections
Welding points
Fuses
Cables




Both Sides Grounded
Within electrical power utilities, switchgear owners and service companies, there is an increased emphasis on efficiency of operations, maintenance and service levels. There is an increased emphasis on health, safety, and environmental compliance. Experience has also shown demands for shorter time periods for testing, while the switchgear is less and less available to be taken out of service.
Many utilities require safety grounds to remain in place during station outages, therefore, the MOM2 was designed with this field safety constraint in mind. DualGround means that the test object will be grounded on both sides throughout the test giving a safer, faster and easier workflow. Minimum time shall be spent in the substation and focus shall be on the test rather than the equipment.

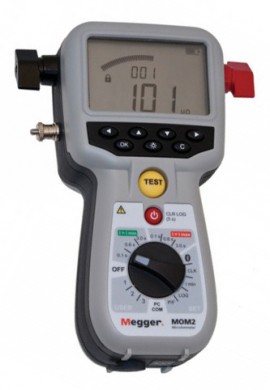

Instrument Front View

1. Current output terminal (-)
2. Current output terminal (+)
3. Display
4. Ground (earth) terminal
5. Keys for navigation and to make settings in the display
6. TEST-button
7. Stand-by/Wake up (Press shortly to toggle)
8. Clear log (Press and hold for 5 seconds)
9. Function selector
10. Connector for the voltage (–) sense lead
11. Connector for the voltage sense (+) lead and the trig function
12. Connector for the battery charger
13. Battery charger indicator


The Kelvin probes (included in BD-59090) are used for a 4-wire Kelvin test. This is a way of measuring continuity resistances ensuring all contact and lead resistances are compensated for, allowing a much greater accuracy in measurements. Each Kelvin probe assembly has two probe tips: one tip is for the current generated; the other will measure the very small voltage present.
The Kelvin clamps (included in BD-59092) use the same principle.




Equipment and methods that supports DualGround™ testing are associated with the DualGround symbol. This symbol certifies the use of groundbreaking technology and methods that enables a safe, fast and easy work?ow with both sides grounded throughout the test.∏∏
