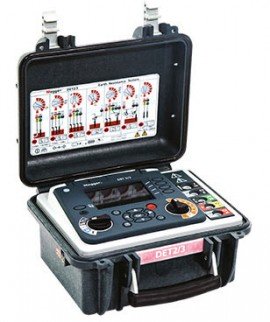

MEGGER DET2/3 Datasheet & Stock

Megger DET2/3 Offers

Features

High resolution of 1 mΩ, ideal for large earth (ground) systems
Versatile test modes
High accuracy for earth (ground) electrode grid and soil resistivity tests
Rechargeable battery power that can last all day with a fast re-charge (up to 10 hours)
Robust instrument with IP65 protection
Automatic test frequency selection, with filters and high current features
Diagnostic trace display
Data storage
Large color display that shows numeric and graphical results


High accuracy earth ground measurements
This instrument provides accurate 1 mΩ resolution measurements of earth (ground) electrode resistance along with a microprocessor controlled system that provides a flexible and "user-friendly" approach to earth tests by the provision of excellent error detection capabilities and full test information shown on a large color display.

Test frequency, test voltage and filtering can be quickly and easily adjusted so that adverse
conditions, which can influence the test, can be overcome. A wide band of test frequencies, with a resolution of 0.5 Hz, can be used to eliminate errors caused by noise in the earth. It also includes an automatic frequency selection feature that scans for frequencies with the lowest noise level and then runs a test at that frequency.

Trace display and data storage
Utilizing the latest processors, it can provide a live trace of its measurements, which graphically shows the amount of noise from the system under test, combined with a large internal memory which allows for immediate calculations of resistivity (Wenner or Schlumberger method) and the ability to save a complete day's worth of test results.

Test result data can be downloaded directly through a USB flash drive or straight to a Windows PC running PowerDB™ software.

Weatherproof and rugged
The tester is sealed to IP54 standard, which provides weatherproofing during operation (case lid open).
When the case lid is closed its protection standard is to IP65 (water and dust damage). The case is made of a tough and light copolymer polypropylene, which can withstand the rough and tumble of outdoor use.

Portable power
An internal Li-ion battery provides for a full day of tests. The Li-ion battery has a fast recharge facility that allows a flat battery to provide an afternoon of tests, if charged during a lunch break. It can also operate from a standard 12 V DC battery supply.

Applications

Power utilities
Electrical contractors and electricians
Industrial plant maintenance
Field service and maintenance
Railways
Hospitals
Electrical testing
Petrochemical
Earthing specialist
Telecom and datacom
Lightning protection contractors and installers
