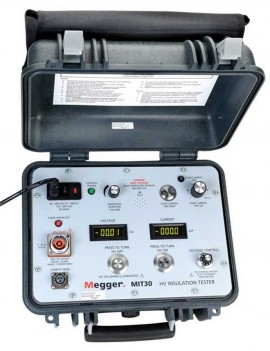

The Megger MIT30 is a portable 30-kV insulation tester that has been developed to undertake tests on UST (ungrounded test samples). It satisfies the demand for a variety of high voltage, high accuracy, and low current applications. The MIT30 is NOT suitable for use on grounded/earthed test samples.

The MIT30 has a test current of up to 330 µA, and user selectable trip levels from 0 to 360 µA. The MIT30 provides protection to the test piece against flashovers (arcing) and further damage in the event of a breakdown. An audible ionization indicator gives an audio indication of any electrical discharges present during the test period.

The MIT30 can be used to perform step-voltage and proof tests which, when incorporated into a routine maintenance program, can aid in predicting potential failure before breakdown occurs.

The MIT30 will operate from a wide range of input voltages and frequencies. The unit will will operate from 85-264 V ac with a frequency range of 47-440 Hz.

Applications

The MIT30 checks the electrical insulation quality and integrity of a wide variety of insulation material on UST ungrounded systems.

Due to the unique combination of up to 30-kV high voltage, high accuracy down to 100 nA, and low current 0-330 µA, the MIT30 has several applications:


Acceptance and Maintenance Testing of Electrical Plant:

Switchgear
Buss-Bars
Capacitors


Defense Industry
Aerospace Industry
Rubber Safety Glove Testing
Testing of Vacuum Interrupters
Power Equipment/Plant Manufacturers to Perform QA/QC Production Tests
