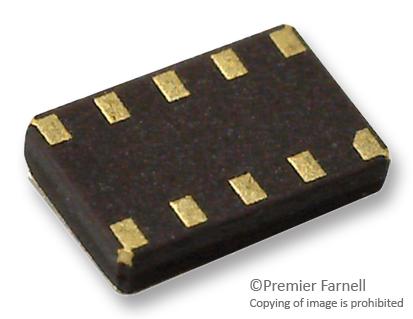

MICRO CRYSTAL RV8523C3TAQC020 Real-Time Clock IC
This real-time clock IC is designed for ultra-low power consumption of approximately 130nA at 3.0V, seamlessly integrating a 32.768 kHz crystal with advanced CMOS and real-time-clock circuitry. It features programmable alarms, timers, and switch-over circuitry for backup power, alongside designer-friendly attributes like miniature SMT ceramic packaging, high frequency precision, time-keeping down to 1.2V, and fast mode I²C bus interface at 1 MHz. Perfect for battery-powered systems, it offers accurate time tracking and robust environmental resistance, suitable for various industrial timing applications.
MICRO CRYSTAL RV8523C3TAQC020 Real-Time Clock IC Specifications:
- Supply voltage Vcc for I²C bus active: 1.6 to 5.5 V
- Supply voltage Vpp for Power Management: 1.8 to 5.5 V
- Supply voltage Vop for Time keeping: 1.2 to 5.5 V
- Current consumption during access at 1 MHz: 100 to 200 pA
- Current consumption at 0 Hz, Vcc=3V: 130 to 180 nA
- Time keeping mode at 2V Vcc: 110 to 160 nA
- Programmable CLKOUT frequency: 32768 Hz to 1 Hz
- Frequency tolerance at 25°C: +10 to +20 ppm
- Aging max. first year: ±3 ppm
- Temperature range for storage: -55°C to +125°C
- Operating temperature range: -40°C to +85°C
- Shock resistance: ±5 ppm at 5000 g, 0.3 ms
- Vibration resistance: ±5 ppm at 20g, 10-2000 Hz
- Package type: 10-pin Au plated SMD, reflow soldering compatible
- Dimensions: Typical package size 12 mm tape, reel options available
- Certifications: RoHS compliant, Lead-free (100% lead-free)
Buy the Micro Crystal Series RTC: RV8523C3TAQC020
Upgrade your electronic system with the RTC IC designed for ultra-low power operation, combining tiny SMT ceramic packaging with advanced frequency accuracy. Ideal for battery-powered devices requiring precise time keeping, programmable alarms, and timers. With high environmental resilience and fast I²C interface, it guarantees dependable performance in various industrial and consumer applications. Available in tape for pick-and-place assembly, this compact RTC chip enhances your project’s reliability and efficiency. Purchase online today for seamless integration into your designs.
Order your Micro Crystal Series RTC RV8523C3TAQC020 today and ensure precise, low power timekeeping for your critical applications.
