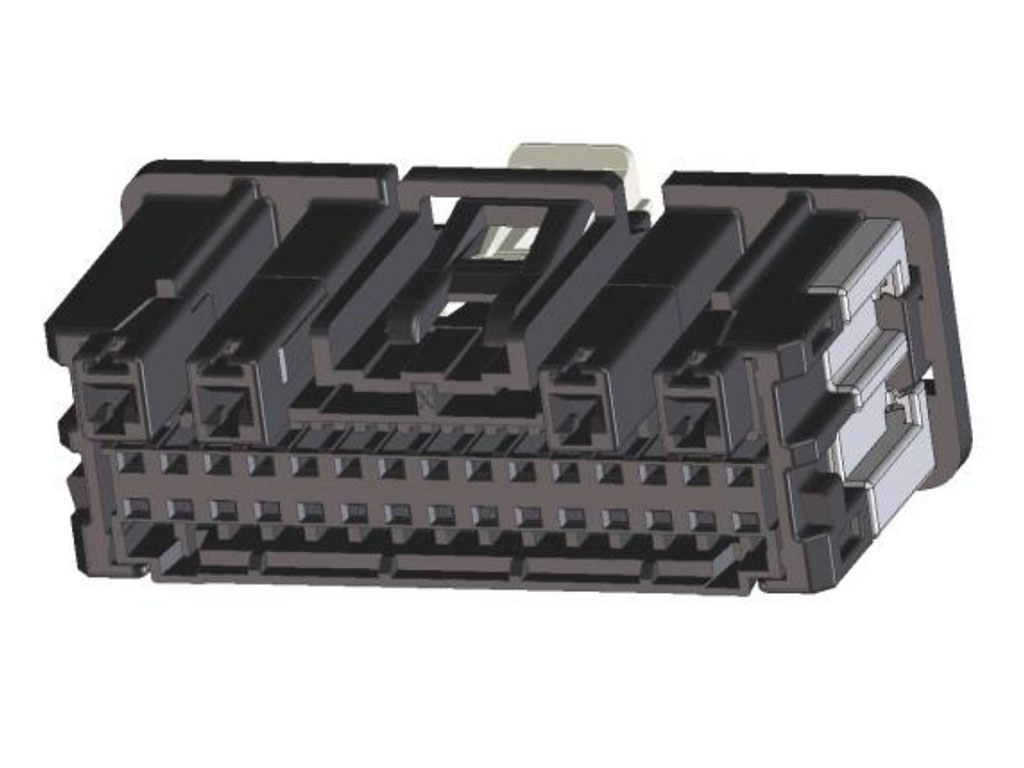

MOLEX / WALDOM 349590341 Mini50 Unsealed Receptacle
The MOLEX / WALDOM 34959-0341 Mini50 Unsealed Receptacle is a versatile connector solution for automotive, power, and wire-to-board applications. This receptacle offers 34 circuits, polarization option B, and is designed with a gray nylon resin for durability and reliable performance. It is stackable and polarized to the mating part, ensuring secure connections. The receptacle is compatible with CTX50 unsealed terminals and mates with Mini50 vertical and right-angle headers, making it a flexible choice for various system designs. It is RoHS compliant and features low-halogen content, aligning with environmental standards.
MOLEX / WALDOM 349590341 Mini50 Unsealed Receptacle Specifications:
- circuits_maximum: 34
- color_resin: Gray
- gender: Receptacle
- glow_wire_capable: No
- keying_to_mating_part: Yes
- lock_to_mating_part: Yes
- material_resin: Nylon
- net_weight_g: 5.524
- number_of_rows: 3
- packaging_type: Bag
- panel_mount: No
- pitch_mating_interface_mm: 2.00
- pitch_termination_interface_mm: 2.00
- polarized_to_mating_part: Yes
- stackable: No
- temperature_range_operating_c: -40° to +105°
- application: Automotive, Power, Wire-to-Board
- product_family: Crimp Housings
- upc: 887191704425
- series: 34959
- mates_with: Mini50 Vertical Headers: 349580341, 349587341, 349588341; Mini50 Right-Angle Headers: 349610341, 349617341, 349618341
- use_with: CTX50 Unsealed Terminals 560023
- eu_elv_compliant: Yes
- eu_rohs: Compliant
- china_rohs: Compliant
- reach_svhc: Not Contained
- halogen_free_status: Low-Halogen
