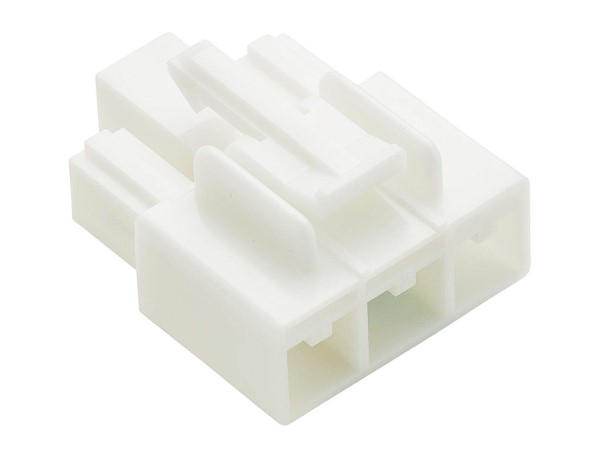

MOLEX / WALDOM 351510319 Hybrid Plug Housing
The MOLEX / WALDOM 35151-0319 VersaBlade Hybrid Plug Housing is a key component in the VersaBlade Wire-to-Wire Connector System. Designed for robust power applications, this housing provides a secure and reliable connection with its positive lock mechanism. It accommodates 3 circuits and is constructed from PET/PC resin, offering durability and resistance to environmental factors. The housing is glow-wire capable and features a natural resin color, making it suitable for a wide range of industrial and automotive applications. Its polarized design ensures correct mating, and its compact form factor simplifies integration into various systems.
MOLEX / WALDOM 351510319 Hybrid Plug Housing Specifications:
- Overview: VersaBlade Wire-to-Wire Connector System
- Description: VersaBlade Hybrid Plug Housing, 3 Circuits, Positive Lock, Natural, Glow-Wire Capable
- Status: Active
- Series: 35151
- Application: Power, Wire-to-Wire
- Gender: Plug
- Circuits: 3
- Color: Natural
- Flammability: 94V-0
- Keying: None
- Lock: Yes
- Material: PET/PC
- Mates With: VersaBlade Receptacle Housing 35150, 2026500909, Receptacle Housing 35524
- Net Weight: 2.740/g
- Rows: 1
- Packaging: Bag
- Panel Mount: No
- Pitch - Mating Interface: 7.30mm
- Pitch - Termination Interface: 7.30mm
- Polarized: Yes
- Stackable: No
- Temperature Range: -40° to +110°C
- RoHS Compliant: Yes
- Halogen-Free: No
- Reach SVHC: Not Contained
- EU ELV: Not Relevant
Buy the 35151-0319 MOLEX / WALDOM Hybrid Plug Housing | myMectronic
Purchase the genuine MOLEX / WALDOM 35151-0319 Hybrid Plug Housing securely and efficiently through our online platform.
Buy Now
Frequently Asked Questions
Where can I buy MOLEX / WALDOM 351510319?
You can click on the BUY or RFQ button to purchase 351510319 from an authorized MOLEX / WALDOM distributor.
How do I troubleshoot issues or seek technical support for part 351510319?
You can download the 351510319 datasheet or visit the MOLEX / WALDOM website for support.
Who is the manufacturer of 351510319?
MOLEX / WALDOM
