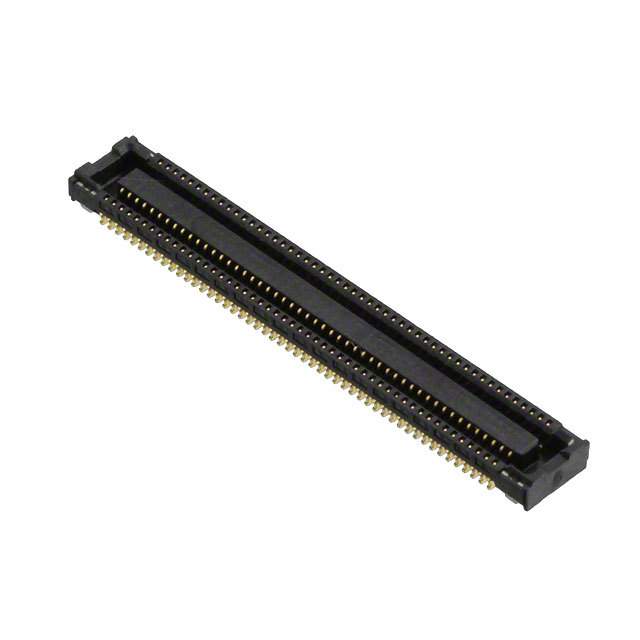

MOLEX / WALDOM 513381074TR625 SlimStack Board-to-Board Connector
The MOLEX / WALDOM 51338-1074-TR625 SlimStack connector is a board-to-board receptacle designed for applications where space is at a premium. Its 0.40mm pitch and J-Bend configuration enable efficient routing and compact designs. The connector features gold plating on the mating interface for low contact resistance and reliable signal transmission. It is suitable for a wide range of applications including consumer electronics, industrial automation, and telecommunications equipment. The connector's robust construction and gold-plated contacts ensure long-term reliability and performance.
MOLEX / WALDOM 513381074TR625 SlimStack Board-to-Board Connector Specifications:
- circuits_loaded: 100 Circuits
- circuits_maximum: 100 Circuits
- color_resin: Black
- durability_mating_cycles_max: 30
- glow_wire_capable: No
- lock_to_mating_part: Yes
- mated_height: 1.50mm, 2.00mm
- mated_width: 3.40mm
- material_metal: Phosphor Bronze
- plating_mating: Gold
- plating_termination: Gold
- net_weight: 150.941/mg
- number_of_rows: 2
- orientation: Vertical
- pcb_locator: No
- pcb_retention: None
- packaging_type: Embossed Tape on Reel
- pitch_mating_interface: 0.40mm
- pitch_termination_interface: 0.40mm
- plating_min_mating: 0.200µm
- polarized_to_mating_part: No
- polarized_to_pcb: No
- surface_mount_compatible: Yes
- temperature_range_operating: -40° to +105°C
- termination_interface_style: Surface Mount
- current_maximum_per_contact: 0.3A
- voltage_maximum: 50V AC (RMS)/DC
