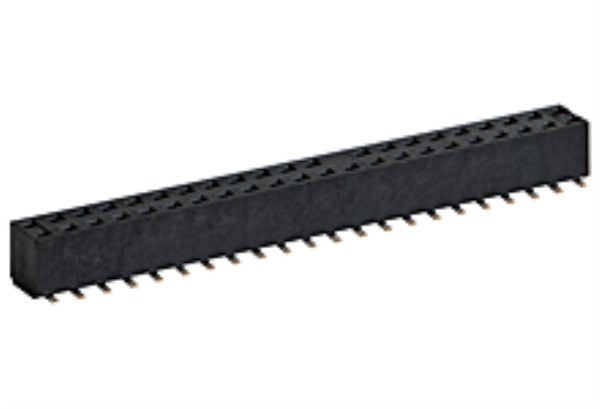

MOLEX / WALDOM 873819016 Milli-Grid Receptacle
The MOLEX / WALDOM 87381-9016 Milli-Grid Receptacle is a precision-engineered connector designed for demanding board-to-board applications. With a 2.00mm pitch and surface mount capability, this receptacle offers a compact and reliable solution for connecting electronic circuits. The gold plating on the mating interface ensures excellent signal integrity, while the high-temperature thermoplastic resin provides durability and resistance to harsh environments. It is commonly used in industrial automation, telecommunications equipment, and other applications requiring high-density interconnects.
MOLEX / WALDOM 873819016 Milli-Grid Receptacle Specifications:
- Pitch - Mating Interface: 2.00mm
- Circuits (Loaded): 8 Circuits
- Material - Plating Mating: Gold
- Material - Plating Termination: Tin
- Flammability: 94V-0
- Current - Maximum per Contact: 1.9A
- Voltage - Maximum: 125V
- Plating min - Mating: 0.381µm
- Plating min - Termination: 1.270µm
- Temperature Range - Operating: -55° to +105°C
- Durability (mating cycles max): 25
- Number of Rows: 2
- Net Weight: 0.175/g
- Solder Process Data Duration at Max. Process Temperature (seconds): 012
- Solder Process Data Max. Cycles at Max. Process Temperature: 001
- Solder Process Data Process Temperature max. C: 260
