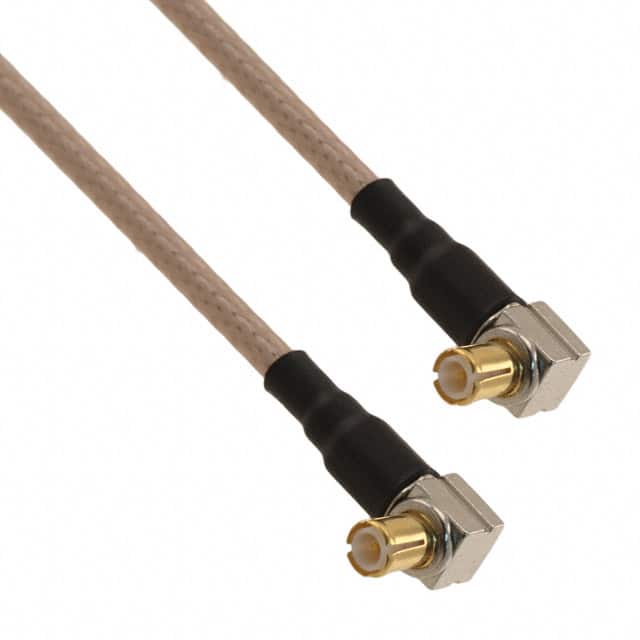

MOLEX / WALDOM 897616133 MMCX RF Cable Assembly
The MOLEX / WALDOM 0897616133 is a dual-ended MCX right-angle plug RF cable assembly designed for applications requiring a compact and reliable connection. Constructed with an RG-316 cable, this assembly offers excellent performance and durability. It is commonly used in wireless communication systems, test and measurement equipment, and other RF applications where space is limited and a secure connection is essential. The assembly's right-angle connectors minimize strain and allow for flexible routing in tight spaces. It is RoHS compliant and features a 50 Ohm impedance for optimal signal transmission.
MOLEX / WALDOM 897616133 MMCX RF Cable Assembly Specifications:
- Part Number: 0897616133
- Status: Active
- Overview: RF Standard Cable Assemblies Solutions
- Description: MCX Right-Angle Plug-to-MCX Right-Angle Plug Assembly, RG-316 Cable, Length 152.40mm, 50 Ohms
- Product Family: Cable Assemblies
- Series: 89761
- Assembly Configuration: Dual Ended Connectors
- Connector to Connector: MMCX-to-MMCX
- Product Name: MMCX, RF
- Type: RF Cable Assembly
- UPC: 883906706104
- Cable Length: 152.40mm (6.000")
- Circuits (Loaded): 0
- Gender: Plug/Plug
- Net Weight: 5.428/g
- Number of Rows: 1
- Packaging Type: Bag
- Single Ended: No
- Wire/Cable Type: RG-316
- Impedance: 50Ω
- Sales Drawing: SD-89761-613-001
- EU ELV: Not Relevant
- EU RoHS: Compliant with Exemption 6(c)
- China RoHS: REACH SVHC Contained Per - D(2022)4187-DC (10 June 2022) Lead
- Halogen-Free Status: Not Low-Halogen
- RoHS Phthalates: Not Contained
