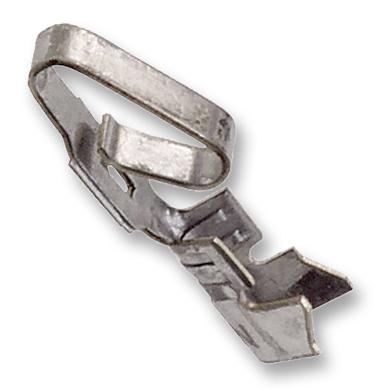

MOLEX 08500030 KK Crimp Terminal
The MOLEX 08-50-0030 KK Crimp Terminal is a crucial component within the KK Interconnect System, specifically designed for secure and reliable wire-to-board connections. This terminal accommodates wire gauges ranging from 22 to 30 AWG and utilizes a cat ear crimp design for robust termination. Constructed with a brass body and finished with tin plating, it offers excellent conductivity and corrosion resistance. Commonly used in various industrial and consumer electronics applications, the 08-50-0030 ensures a dependable electrical connection.
MOLEX 08500030 KK Crimp Terminal Specifications:
- material_metal: Brass
- material_plating: Tin
- plating_min_mating: 1.016µm
- plating_min_termination: 1.016µm
- termination_interface_style: Crimp or Compression
- wire_insulation_diameter_max: 1.57mm
- wire_size_awg: 22, 24, 26, 28, 30
- wire_size_mm2: N/A
- net_weight_g: 0.680
- packaging_type: Reel
- application: Wire-to-Board
- product_family_series: 4809 Series
- use_with: 6471 2.54mm Pitch KK Crimp Terminal Housing
- engineering_number: 4809C-(P918)M
- lead_free_process_capability: N/A
- elv_not_relevant: N/A
- china_rohs: Compliant
- reach_svhc: Not Contained
- halogen_free_status: Low-Halogen
- rohs_certificate_of_compliance: Available
- extraction_tool_product_number: 11030022
- terminator_die_product_number: 11402102
- insertion_tool_product_number: 638120000
- mini_mac_product_number: 638887100
Buy the 08-50-0030 MOLEX KK Crimp Terminal | myMectronic
Purchase the MOLEX 08-50-0030 KK Crimp Terminal securely and efficiently for your project needs.
Buy Now
Frequently Asked Questions
Where can I buy MOLEX 08500030?
You can click on the BUY or RFQ button to purchase 08500030 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 08500030?
You can download the 08500030 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 08500030?
MOLEX
