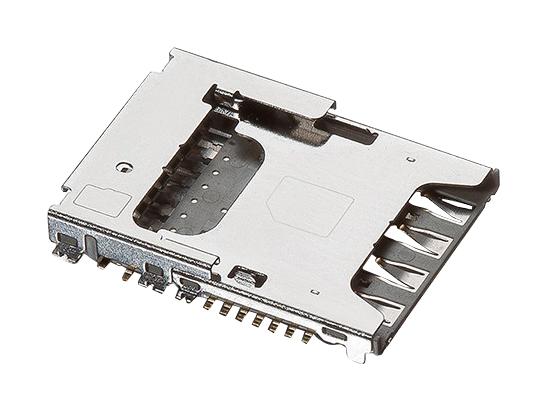

MOLEX 1041681620 memory card socket
The microSD and micro-SIM card combo connector features a compact 2.28mm height with push-pull operation, designed for reliable card detection and easy insertion. It accommodates 8 circuits with a built-in detection switch, supporting both microSD and micro-SIM cards for versatile applications in mobile devices and embedded systems. Made from durable stainless steel and liquid crystal polymer, it withstands up to 10,000 mating cycles, operates within -40°C to +85°C, and is RoHS compliant. Its surface-mount design ensures easy assembly in compact electronic equipment, providing secure electrical connections for data transfer and storage solutions.
MOLEX 1041681620 memory card socket Specifications:
- Material - Shell: Stainless Steel
- Material - Plating Mating: Gold over Nickel
- Material - Plating Termination: Gold
- Material - Resin: Liquid Crystal Polymer
- Color - Resin: Natural
- Card Entry Location: Front
- Card Detection Switch: Yes
- Circuits (Loaded): 8
- Durability (mating cycles max): 10,000
- Temperature Range - Operating: -40°C to +85°C
- Maximum Current per Contact: 0.5A
- Maximum Voltage: 10V AC/DC
- Process Temperature Max.: 260°C for 5 seconds
- Process Capability: Reflow
- Packaging Type: Embossed Tape on Reel
- Pitch - Mating Interface: 1.10mm
- Dimensions: Height 2.28mm, weight approximately 0.500g
- Reference - Drawing Numbers: PK-104168-001, PS-104168-001
- Certifications: RoHS Compliant, China RoHS, EU ELV Not Relevant
Buy the Molex 1041681620 – Reliable MicroSD and Micro-SIM Card Connector for Industrial Applications
Purchase the Molex 1041681620 microSD and micro-SIM combo connector online today. Designed for durability and high-performance data storage, this connector offers 8 circuits, a built-in detection switch, and robust RoHS compliance. Its compact 2.28mm height and surface-mount design make it ideal for mobile and embedded systems. With a high cycle life of 10,000 mating cycles and operating temperature range from -40°C to +85°C, it ensures secure connections and reliable performance in demanding environments, simplifying assembly and enhancing product longevity.
Get Molex 1041681620 today—built for secure data transfer in compact electronic devices.
