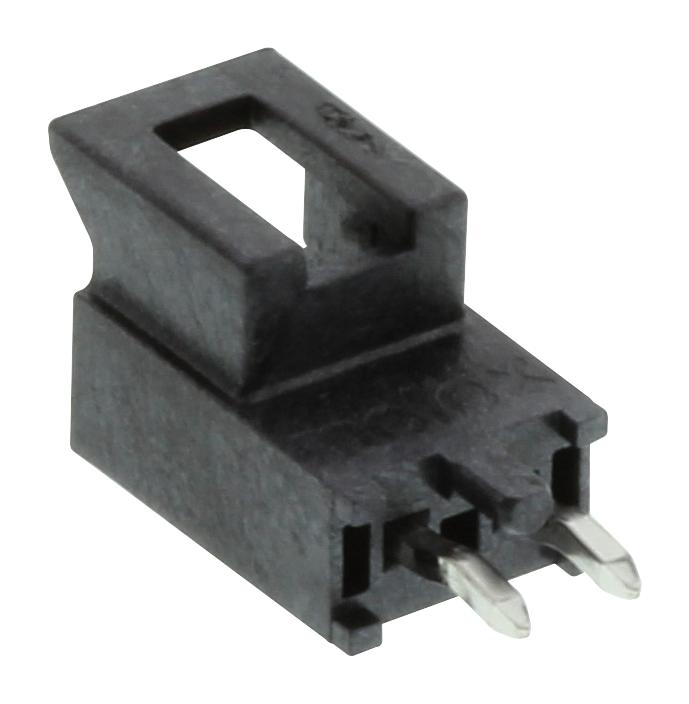

MOLEX 1053091102 Nano-Fit Power Header
The MOLEX 105309-1102 Nano-Fit Vertical Header is a compact and reliable connector solution for power applications in various industries. Designed with a 2.50mm pitch and a single-row configuration, this header provides a secure and efficient connection between wires and printed circuit boards. The header's through-hole design simplifies integration, while the kinked pins and tin plating ensure excellent conductivity and durability. It is ideal for applications requiring high current carrying capacity and robust mechanical performance, commonly found in consumer electronics, automotive systems, and industrial equipment.
MOLEX 1053091102 Nano-Fit Power Header Specifications:
- overview: Nano-Fit Power Connectors
- description: Nano-Fit Vertical Header, Through Hole, 2.50mm Pitch, Single Row, 2 Circuits, with Kinked Pins, Tin (Sn) Plating, Black
- agency_certification: CSA LR19980, UL E29179
- series: Nano-Fit Power Connectors
- circuits_loaded: 2
- circuits_maximum: 2
- color_resin: Black
- durability_mating_cycles: 25
- flammability: 94V-0
- glow_wire_compliant: No
- guide_to_mating_part: Yes
- keying_to_mating_part: Yes
- lock_to_mating_part: Yes
- material_metal: Brass
- material_plating_mating: Tin over Nickel
- material_plating_termination: Tin over Nickel
- material_resin: Liquid Crystal Polymer
- net_weight_g: 0.270
- number_of_rows: 1
- orientation: Vertical
- pc_tail_length_mm: 3.20
- pcb_locator: Yes
- pcb_retention: Yes
- pcb_thickness_recommended_mm: 1.60, 2.40
- packaging_type: Tray
- pitch_mating_interface_mm: 2.50
- pitch_termination_interface_mm: 2.50
- plating_min_mating_um: 1.524
- plating_min_termination_um: 1.524
- polarized_to_mating_part: Yes
- polarized_to_pcb: Yes
- shrouded: Yes
- stackable: No
- surface_mount_compatible: No
- current_maximum_per_contact_a: 6.5
- voltage_maximum_ac_rms: 250V
- temperature_range_operating_c: -40°C to +105°C
- termination_interface_style: Through Hole
- reach_svhc: Not Contained
- halogen_free_status: Low-Halogen
