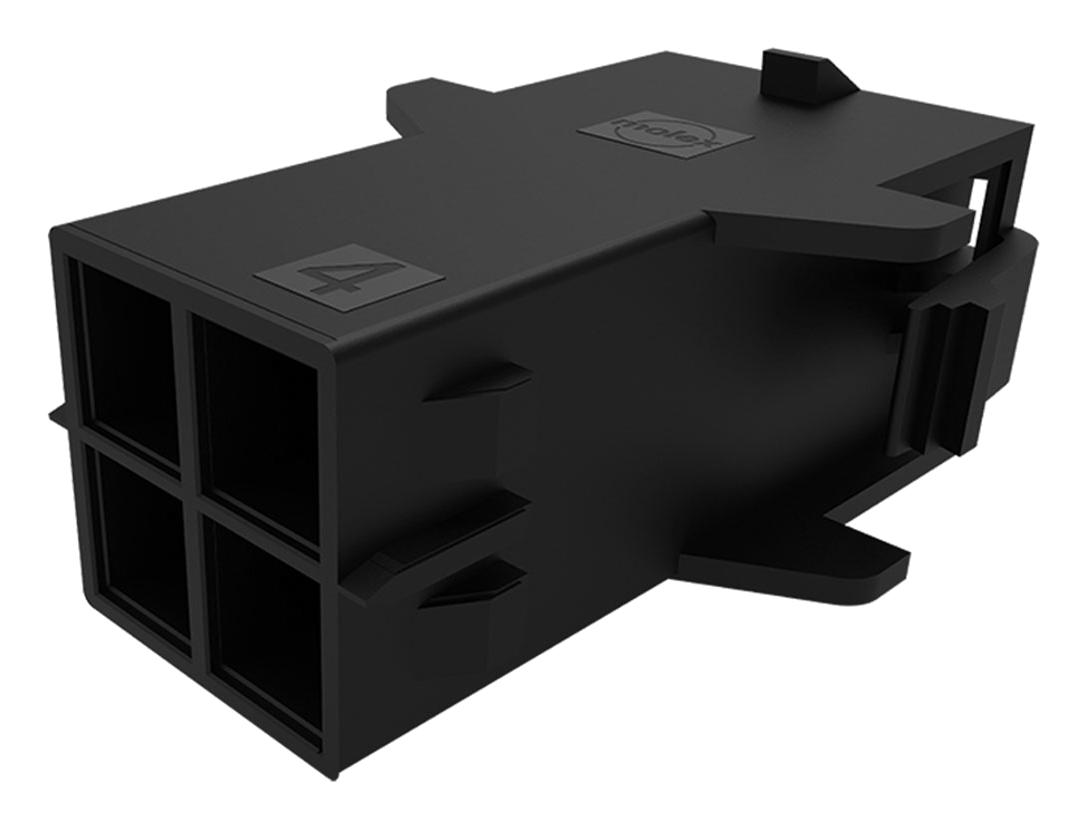

MOLEX 1054111104 Power Connector
Mega-Fit Power Connectors offer a high-current, power-dense solution with a pitch of 5.70mm, capable of delivering 25.0A per circuit. Designed for reliable performance, these connectors feature fully isolated header pins and receptacle terminals, positive locking housings, and sacrificial contacts that support hot-plugging up to 48V and 25.0A over 30 cycles. The family includes vertical and right-angle headers, receptacles, and female crimp terminals, all meeting UL, CSA, RoHS, and glow-wire standards. Their innovative polarizing, keying, and latch designs enhance safety, alignment, and connection security in diverse applications like home appliances, telecom, industrial machinery, and automotive electronics.
MOLEX 1054111104 Power Connector Specifications:
- Electrical Voltage: 600V
- Current Capacity: 25.0A per circuit
- Contact Resistance: 6 millichms
- Dielectric Withstanding Voltage: No Breakdown
- Insulation Resistance: 1,000 Megohms
- Insertion Force (max.): 6.8N
- Header Pin Retention Force: 89N min per pin
- Housing Material: UL 94 V-0, Glow Wire Compatible
- Contact Material: High-Conductivity Copper
- Contact Plating: Gold (0.38 or 0.76 mm) or Tin
- Solder Tail Plating: Tin
- PCB Thickness Compatibility: 1.60 and 2.40mm
- Operating Temperature Range: -40°C to +150°C
- Mating Force: Max. 6.8N per circuit
- Unmating Force: Max. 6.5N per circuit
- Durability: Minimum 2 Megohms change in contact resistance
- RoHS Compliant; Glow Wire Capable; Halogen Free
- Packaging: Bag, Reel, Tray
Buy the Buy Molex Mega-Fit Power Connectors Part Number 1054111104 Online
Get your Molex Mega-Fit Power Connector, Part Number 1054111104, available for purchase online. Designed for high current, secure locking, and reliable performance, these connectors are perfect for industrial, automotive, and consumer electronics. They support hot plugging up to 48V/25.0A over 30 cycles, with features like isolation, positive locking, and keying to prevent mis-mating. Compatible with various header and receptacle series, they meet UL, CSA, RoHS, and glow-wire standards, ensuring safe, durable, and efficient electrical connections for demanding applications.
Order your Molex Series Mega-Fit Power Connectors 1054111104 today and enhance your electrical systems with reliable, high-current, and easy-to-mate connectors.
Frequently Asked Questions
Where can I buy MOLEX 1054111104?
You can click on the BUY or RFQ button to purchase 1054111104 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 1054111104?
You can download the 1054111104 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 1054111104?
MOLEX
