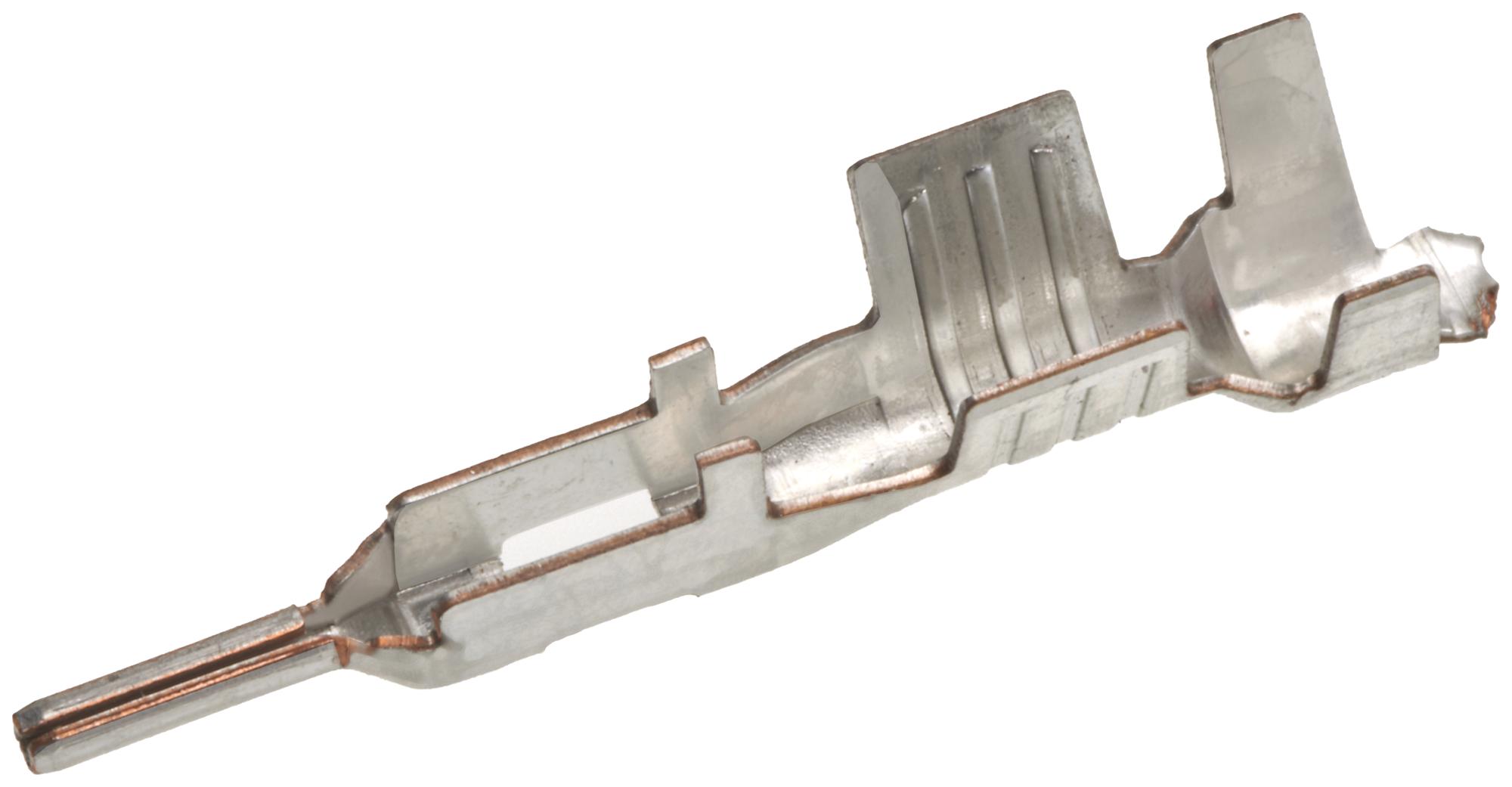

MOLEX 1054170333 Power Connector
Mega-Fit Power Connectors are high-current, 5.70mm pitch modules designed for reliable power applications in industrial, automotive, and consumer electronics. They deliver up to 25.0A per circuit with fully protected header pins and receptacle terminals. Features include keying options to ensure correct mating, positive locking housings, and sacrificial contacts for durability. Suitable for hot-plugging at 48V/25.0A and supporting various mounting orientations, they provide a stable, noise-free connection with low mating force. Ideal for power distribution, automation, and heavy machinery applications.
MOLEX 1054170333 Power Connector Specifications:
- Voltage (max.): 600V
- Current (max.): 25.0A
- Contact Resistance: 6 millichms
- Dielectric Withstanding Voltage: No Breakdown
- Current leakage: <5mA
- Insulation Resistance (min.): 1,000 Megohms
- Contact Insertion Force (max.): 6.8N
- Contact Retention to Housing: 30N
- Insertion Force to PCB (max.): 85N
- Housing Material: UL 94 V-0, Glow Wire compatible
- Contact Material: High-Conductivity Copper
- Plating: Gold 0.38 or 0.76 μm, Tin options available
- Solder Tail Area: Tin Plated
- Underplating: Nickel
- PCB Thickness: 1.60 and 2.40 mm
- Operating Temperature Range: -40 to +150°C
Buy the Molex 105417 Power Connector – Reliable Power Distribution for Industrial Applications
Secure your power connectivity needs with the Molex Power Connector designed for industrial and automation applications. It supports up to 25A per circuit, features a 5.70mm pitch, and ensures reliable, noise-free connections. Its keying options and locking mechanisms prevent mis-mating and backout, while the high-quality materials meet UL and glow-wire standards. Easy to install with low-mating force, it is perfect for power supplies, heavy machinery, and consumer electronics, offering durability and safety in your critical power applications.
Get Molex 105417 power connector today—built for high-current power distribution and long-lasting durability in demanding environments.
Frequently Asked Questions
Where can I buy MOLEX 1054170333?
You can click on the BUY or RFQ button to purchase 1054170333 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 1054170333?
You can download the 1054170333 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 1054170333?
MOLEX
