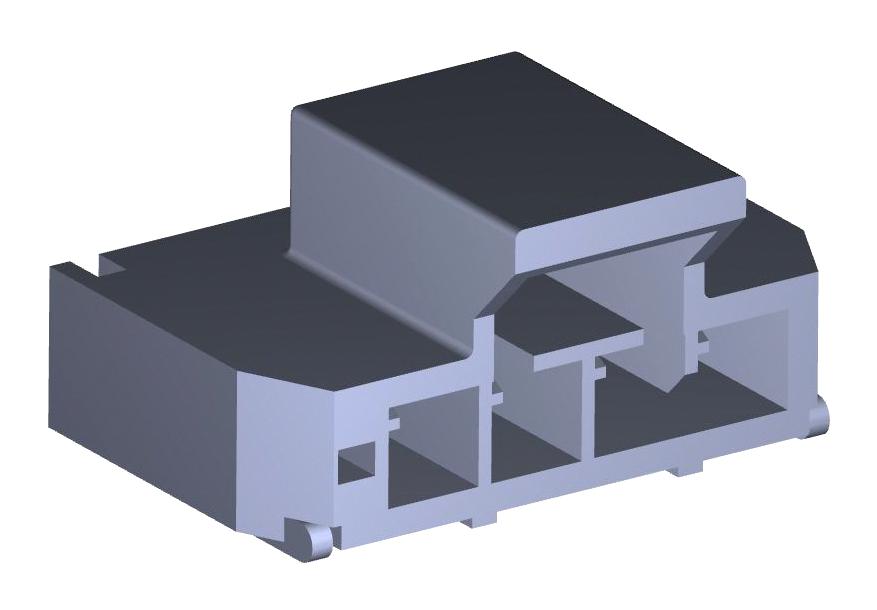

MOLEX 1054301104 Nano-Fit Power Connector
The Nano-Fit Right-Angle Header is a surface-mount power connector with a 2.50mm pitch, featuring a single row of 4 circuits. It is designed for reliable wire-to-board connections, capable of withstanding up to 6.5A and 250V AC. Crafted from brass with tin plating, it offers up to 25 mating cycles and the glow-wire capability for safety. Suitable for applications requiring robust electrical performance, it meets RoHS and REACH standards, with an operating temperature range of -40°C to +105°C, making it ideal for various industrial and electronic devices.
MOLEX 1054301104 Nano-Fit Power Connector Specifications:
- Pitch: 2.50mm
- Number of Circuits: 4
- Material: Brass
- Plating: Tin
- Color: Black
- Durability: Up to 25 mating cycles
- Current Rating: 6.5A
- Voltage Rating: 250V AC
- Operating Temperature: -40°C to +105°C
- Mounting Style: Surface Mount
- Orientation: Right Angle
- Material - Resin: Liquid Crystal Polymer
- Packaged in Embossed Tape on Reel
- RoHS Compliant, REACH SVHC free, Halogen-Free, Low-Halogen
- Glow-Wire Capable
Buy the Molex Series Nano-Fit Power Connectors: 1054301104
Order the Nano-Fit Power Connector with 2.50mm pitch and 4 circuits today. Designed for durability, low contact resistance, and compliance with RoHS and REACH standards, it supports up to 6.5A and 250V AC, ideal for reliable wire-to-board power applications. Its compact right-angle surface-mount design allows easy integration into various electronic devices, ensuring secure and efficient connections. Purchase online now for quick delivery and proven performance in industrial and electronic equipment.
Buy Molex 1054301104 now and experience unmatched reliability and high-performance power connections for your electronic applications.
Frequently Asked Questions
Where can I buy MOLEX 1054301104?
You can click on the BUY or RFQ button to purchase 1054301104 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 1054301104?
You can download the 1054301104 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 1054301104?
MOLEX
