MOLEX 1200845095 industrial connector

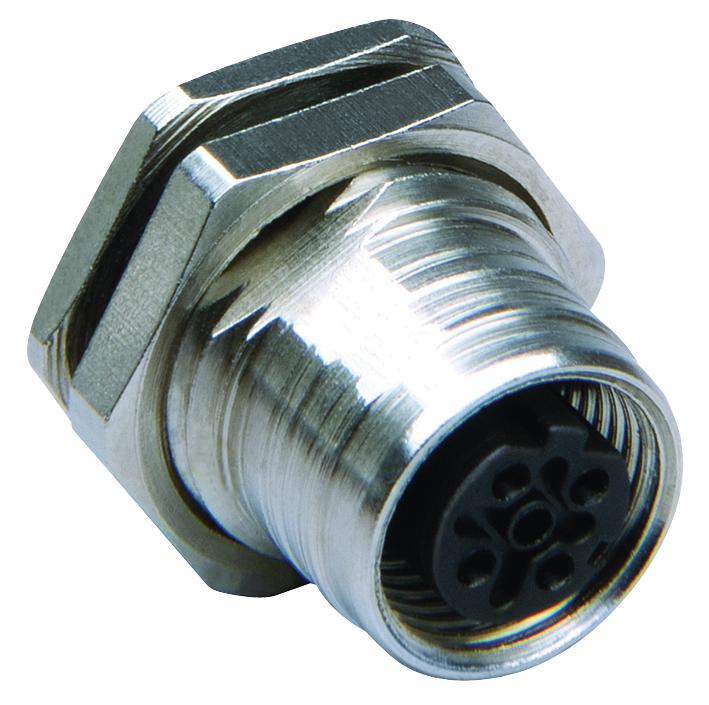

The Ultra-Lock® M12 Receptacle with 8 Poles features a straight female connector with M16x1.5 mounting threads, designed for industrial wiring applications. Made from nickel-plated brass, this connection system provides IP69K and NEMA 6 ratings, ensuring water and dust resistance. It is suitable for operational temperatures from -25°C to +90°C and supports wire sizes up to AWG 24. The 0.30-meter PVC leads enable reliable electrical performance for industrial sensor and automation systems, offering a durable, corrosion-resistant, and easy-to-mount connection solution.
MOLEX 1200845095 industrial connector Specifications:
- Coupling Type: Internal Thread
- Gender: Female
- Keyway: Single
- Length: 0.30m
- Material - Component: Nickel-plated Brass
- Mounting Thread Size: M16x1.5
- Orientation: Straight
- Panel Mount: Front
- Poles: 8
- Temperature Range - Operating: -25°C to +90°C
- Wire Size: AWG 24
- Current Capacity: 2.0A
- Voltage Rating: 30V AC / 36V DC
- Ingress Protection: IP69K
- NEMA Rating: NEMA 6
- RoHS & REACH Compliant: Yes
- Halogen-Free: Not Halogen-Free
- UL Lead: Yes
Buy the Molex 1200845095 – Reliable M12 Connector for Industrial Applications
Order the Molex Ultra-Lock® M12 Receptacle with 8 Poles today. Designed for industrial automation, this high-quality connector features IP69K protection, corrosion-resistant nickel-plated brass, and reliable PVC leads. Its M16x1.5 mounting threads ensure secure installation in demanding environments. Suitable for wire sizes up to AWG 24, it operates within a temperature range of -25°C to +90°C. Ideal for sensor and automation systems requiring water, dust resistance, and long-lasting performance in tough industrial conditions.
Get Molex 1200845095 today—built for precision, durability, and industrial automation efficiency with IP69K sealing and robust construction.
