MOLEX 1200860102 Nano-Change M8 Cordset

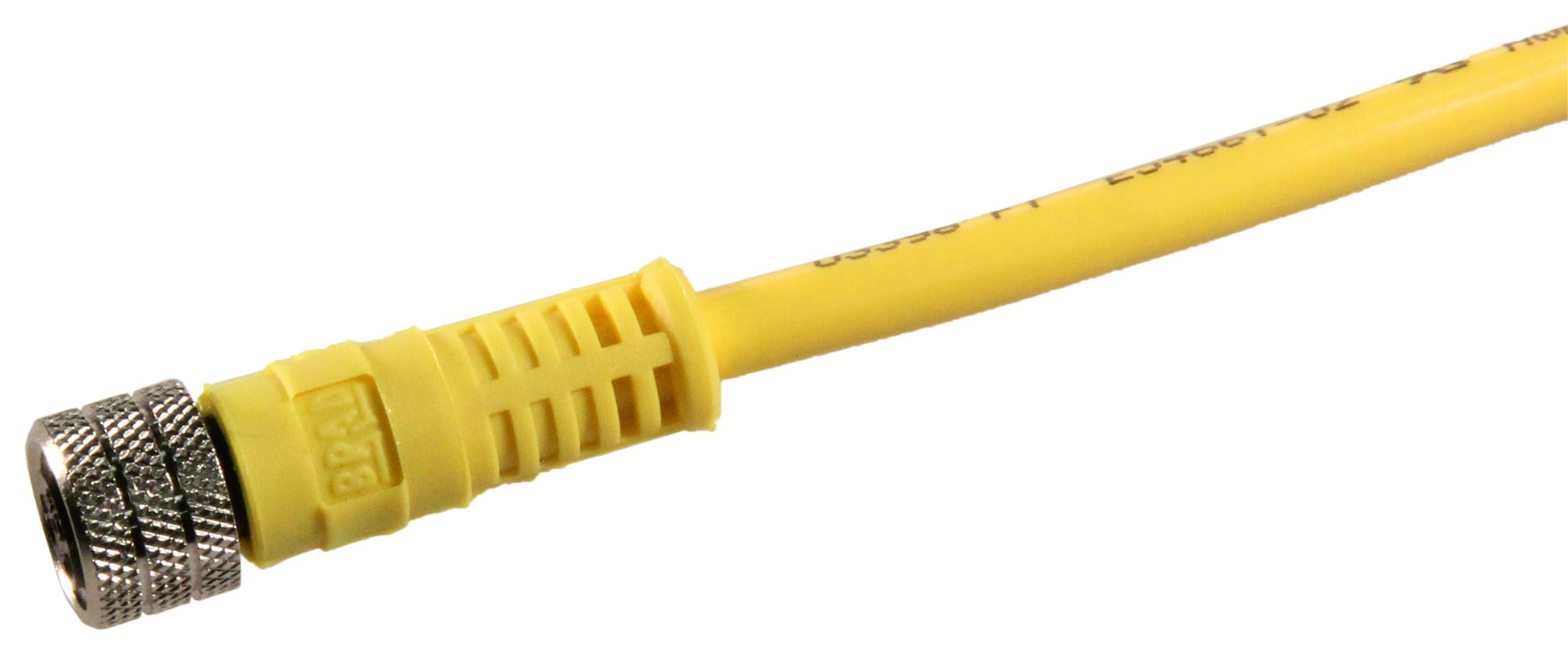

The 1200860102 Nano-Change M8 cordset is a rugged, 2-meter cable designed for industrial sensors and actuators. It features a 3-pole female straight connector on one end and a pigtail on the other end, with a PVC jacket for durability. The sealed IP68 rating ensures protection against harsh environments, making it suitable for industrial and weather-resistant applications. Constructed with a TPE body, copper alloy contacts, and a nickel-plated brass coupling nut, this cordset withstands demanding industrial conditions while providing reliable connectivity and performance.
MOLEX 1200860102 Nano-Change M8 Cordset Specifications:
- Connector Type: Nano-Change M8, single-ended cordset with female straight connector and pigtail
- Number of Poles: 3
- Cable Length: 2.0 meters (6.56 feet)
- Cable Diameter: 4.32 mm (0.170 inches)
- Cable Jacket Material: PVC
- Connector Body Material: TPE
- Contact Material: Copper Alloy, Nickel-plated Brass
- Coupling Nut Material: Nickel-plated Brass
- Sealing Protection: IP68
- Operating Temperature Range: -20°C to +105°C
- Wire Size AWG: 24
- Current Rating: 4.0A
- Maximum Voltage: 60V AC/75V DC
- RoHS Compliance: Yes
- Agency Certifications: CSA, UL
Buy the Buy Molex Nano-Change M8 Part Number 1200860102 Online
Enhance your industrial sensing and automation projects with the Molex Nano-Change M8 cordset. This 2-meter, IP68-rated cable features a rugged design with a sealed connector suitable for harsh environments. Its 3-pole female straight connector and pigtail make installation versatile while providing reliable conductivity. Constructed with durable materials like PVC insulation, TPE body, and nickel-plated brass contacts, this cordset delivers outstanding performance and durability for industrial sensors, actuators, and instrumentation applications. Purchase online now for dependable connectivity.
Order your Molex Series120086 2-meter Nano-Change M8 cordset today and ensure reliable, sealed connectivity for demanding industrial and weather-resistant environments.
Frequently Asked Questions
Where can I buy MOLEX 1200860102?
You can click on the BUY or RFQ button to purchase 1200860102 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 1200860102?
You can download the 1200860102 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 1200860102?
MOLEX
