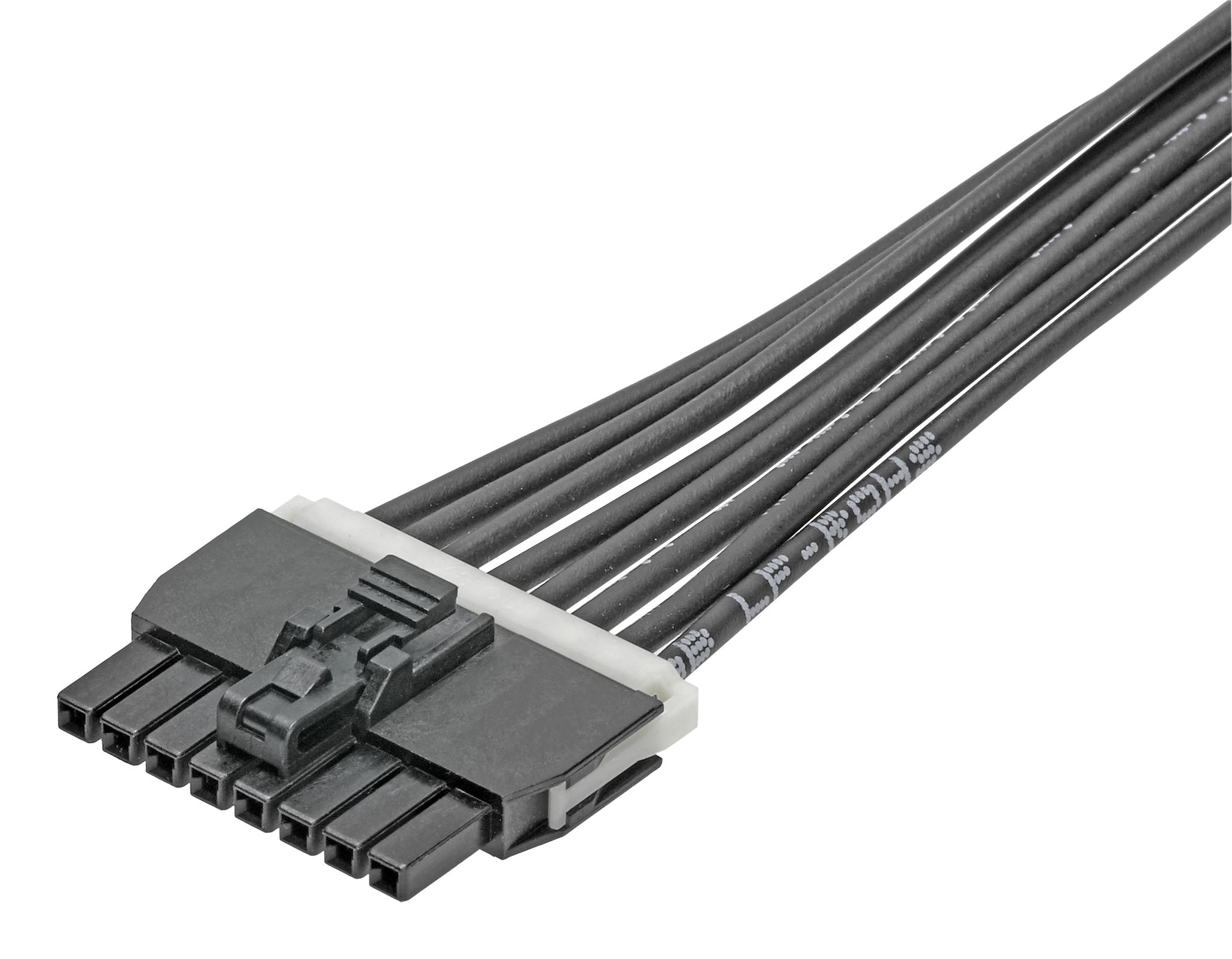

MOLEX 1451300810 Nano-Fit Cable Assembly
The MOLEX 145130-0810 is a Nano-Fit power connector cable assembly designed for wire-to-board applications. This dual-ended cable assembly offers a convenient off-the-shelf solution for connecting Nano-Fit connectors. It boasts a 1.0m length, 8 circuits, and is constructed with high-conductivity copper and a durable nylon resin. The assembly is RoHS compliant and features a matte tin plating for reliable electrical connections, making it suitable for various power distribution systems.
MOLEX 1451300810 Nano-Fit Cable Assembly Specifications:
- Overview: Nano-Fit Power Connectors
- Series: 145130
- Application: Power, Wire-to-Board
- Configuration: Dual Ended
- Connector Type: Nano-Fit-to-Nano-Fit
- Cable Length: 1.0m
- Circuits: 8
- Color: Black
- Material - Resin: Nylon
- Material - Metal: High Conductivity Copper
- Material - Plating Mating: Matte Tin
- Material - Plating Termination: Matte Tin
- Pitch - Mating Interface: 2.50mm
- Plating min - Mating: 2.540µm
- Plating min - Termination: 2.540µm
- Wire Insulation Diameter: 1.57mm
- Wire Size AWG: 20
- Wire/Cable Type: UL 1061
- Current - Maximum per Contact: 6.5A
- Voltage - Maximum: 250V AC (RMS)
- Net Weight: 58.127/g
- Mates With: Nano-Fit Headers 105309, 105311, 105336
- Termination Interface: Crimp or Compression
