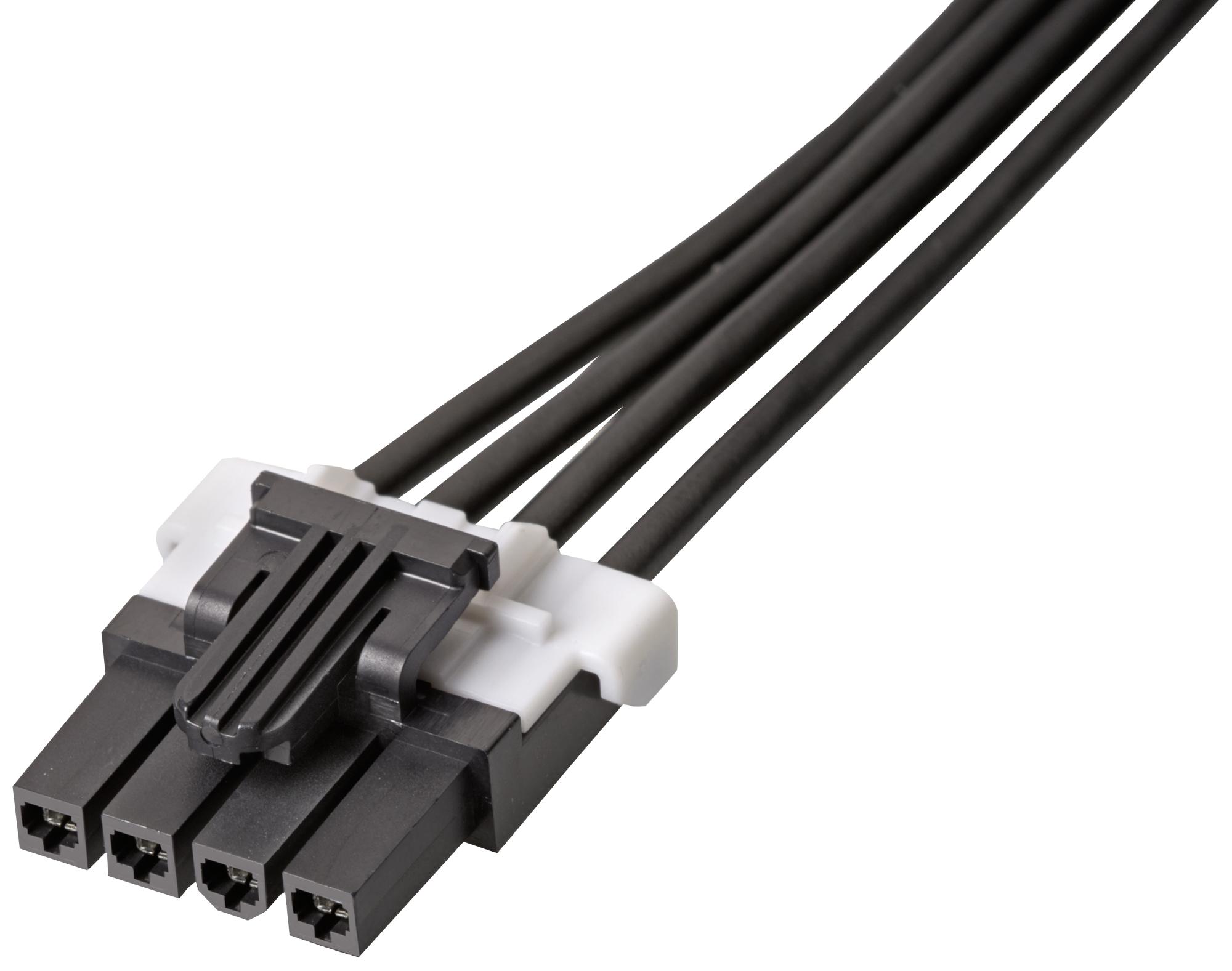

MOLEX 1451350410 Mini-Fit TPA2 Cable Assembly
The MOLEX 145135-0410 is an off-the-shelf discrete cable assembly designed for reliable power and signal transmission in various applications. It connects two Mini-Fit TPA2 connectors with a 1.0-meter cable length and 4 circuits. The assembly utilizes phosphor bronze terminals with tin plating for robust electrical contact and a black nylon resin overmold for enhanced durability and insulation. It is RoHS compliant and suitable for wire-to-board and wire-to-wire connections, making it ideal for industrial equipment, automotive systems, and consumer electronics.
MOLEX 1451350410 Mini-Fit TPA2 Cable Assembly Specifications:
- overview: Off-the-Shelf (OTS) Discrete Cable Assemblies
- application: Power, Wire-to-Board, Wire-to-Wire Assembly
- configuration: Dual Ended
- connectors: Connector to Connector Mini-Fit TPA2 Both Ends
- cable_length: 1.0m
- circuits_loaded: 4
- color_resin: Black
- material_metal: Phosphor Bronze
- plating_mating: Tin (2.500µm min)
- plating_termination: Tin (2.500µm min)
- material_resin: Nylon
- net_weight: 67.941/g
- packaging_type: Bag
- pitch_mating_interface: 4.20mm
- wire_insulation_diameter: 1.98-3.14mm
- wire_size_awg: 16
- wire_cable_type: UL 1061
- current_max_per_contact: 11.0A
- voltage_max: 600V AC/DC
- material_info: Not Contained Per - ED/61/2018 (27 June 2018)
- halogen_free_status: Not Low-Halogen
- mates_with: Mini-Fit TPA2 Plug Housing 200471, 200488; Mini-Fit Jr. Plug Housing 5559; Mini-Fit Jr. Headers 5566, 5569
- drawing_number: 4000095326-000
Buy the 145135-0410 MOLEX Mini-Fit TPA2 Cable Assembly | myMectronic
Purchase the MOLEX 145135-0410 Mini-Fit TPA2 Cable Assembly securely and conveniently online.
Buy Now
Frequently Asked Questions
Where can I buy MOLEX 1451350410?
You can click on the BUY or RFQ button to purchase 1451350410 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 1451350410?
You can download the 1451350410 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 1451350410?
MOLEX
