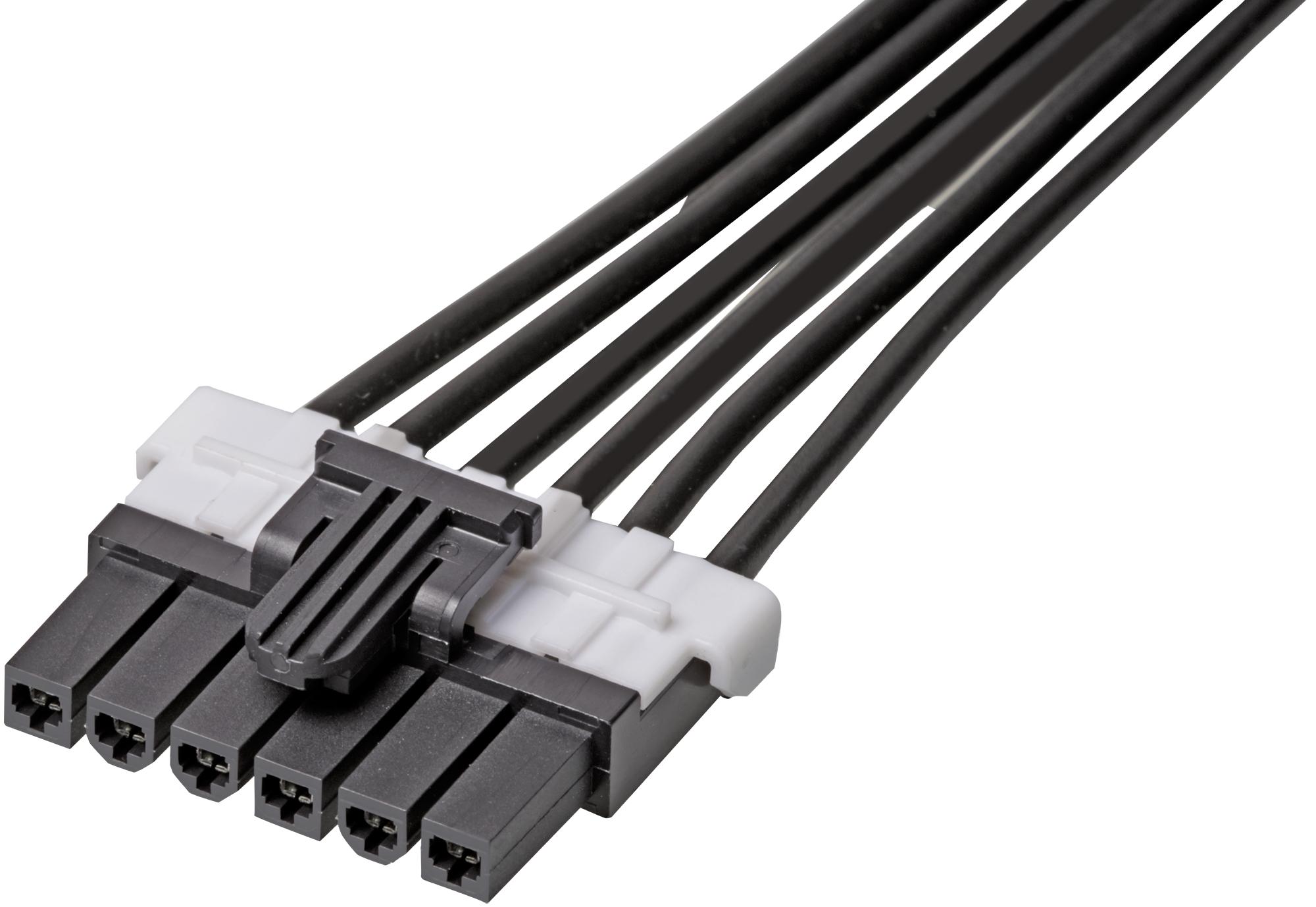

MOLEX 1451350603 Mini-Fit TPA2 Cable Assembly
The MOLEX 145135-0603 is an off-the-shelf discrete cable assembly designed for power, wire-to-board, and wire-to-wire connections. It utilizes Mini-Fit TPA2 connectors on both ends, offering a secure and reliable connection. The assembly features a black nylon resin overmold and phosphor bronze terminals with tin plating for enhanced durability and conductivity. It is commonly used in industrial equipment, automotive applications, and other scenarios requiring robust power transmission.
MOLEX 1451350603 Mini-Fit TPA2 Cable Assembly Specifications:
- overview: Off-the-Shelf (OTS) Discrete Cable Assemblies
- application: Power, Wire-to-Board, Wire-to-Wire Assembly
- configuration: Dual Ended
- connectors: Connector to Connector Mini-Fit TPA2 Both Ends
- cable_length: 300.00mm
- circuits_loaded: 6
- color_resin: Black
- material_metal: Phosphor Bronze
- plating_mating: Tin
- plating_termination: Tin
- material_resin: Nylon
- net_weight: 36.901/g
- packaging_type: Bag
- pitch_mating_interface: 4.20mm
- plating_min_mating: 2.500µm
- plating_min_termination: 2.500µm
- wire_insulation_diameter: 1.98-3.14mm
- wire_size_AWG: 16
- wire_cable_type: UL 1061
- current_maximum_per_contact: 11.0A
- voltage_maximum: 600V AC/DC
- material_info: Not Contained Per - ED/61/2018 (27 June 2018)
- halogen_free_status: Not Low-Halogen
- mates_with: Mini-Fit TPA2 Plug Housing 200471, 200488; Mini-Fit Jr. Plug Housing 5559; Mini-Fit Jr. Headers 5566, 5569
- drawing_number: 4000095329-000
