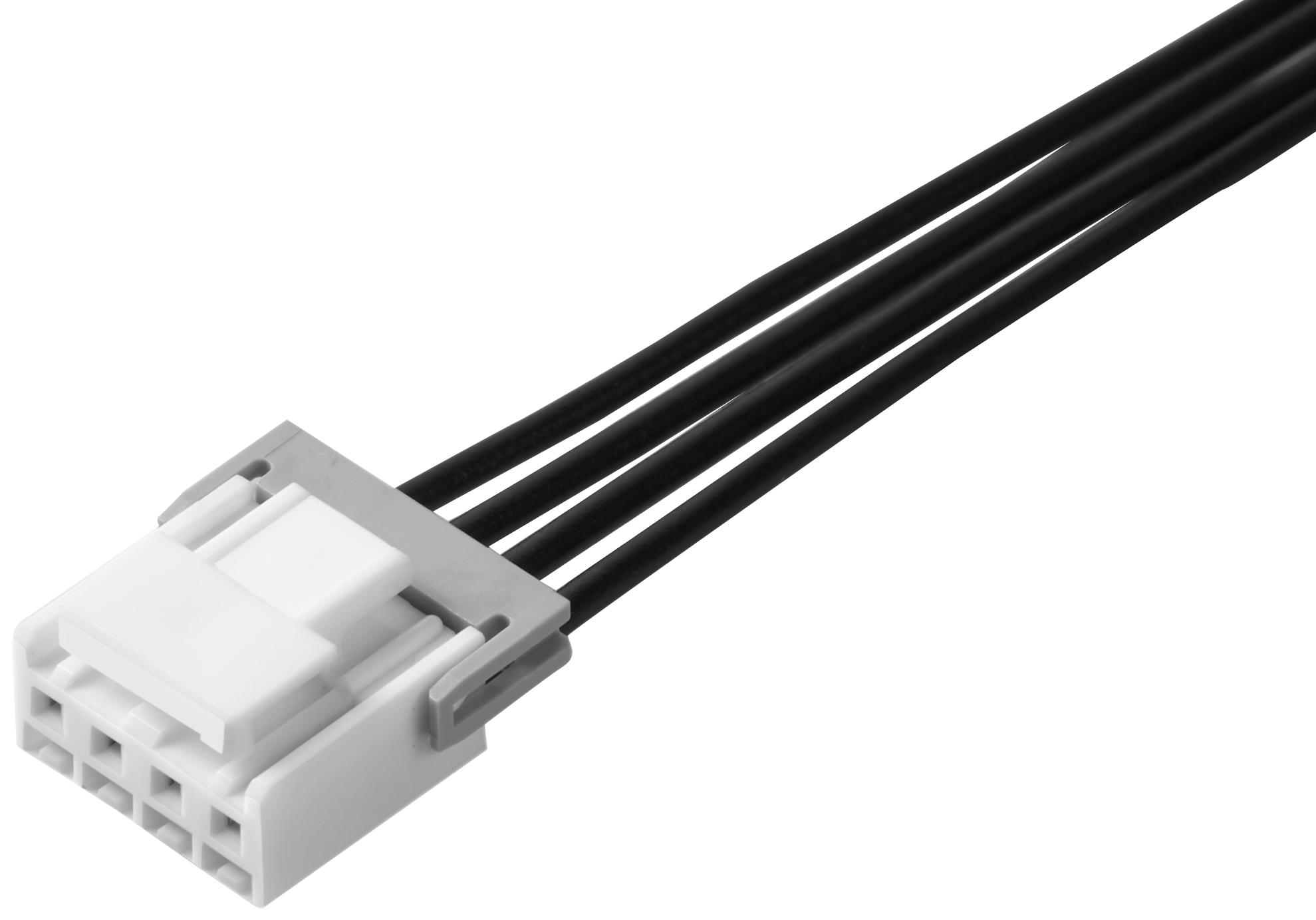

MOLEX 151370402 Mini-Lock Wire-to-Board Connector
The MOLEX 15137-0402 is a Mini-Lock wire-to-board connector assembly, part of the 15137 series. This connector offers a robust solution for signal transmission in various applications, including wire-to-board connections. It features a 2.50mm pitch, female-female gender configuration, and is designed for single-row applications. The connector's natural polyester resin construction provides durability and insulation, while the copper alloy material ensures reliable electrical contact. It is RoHS compliant and suitable for applications requiring a compact and secure connection.
MOLEX 151370402 Mini-Lock Wire-to-Board Connector Specifications:
- overview: Mini-Lock Wire-to-Board Connector System
- description: Mini-Lock-to-Mini-Lock Off-the-Shelf (OTS) Cable Assembly
- pitch_mating_interface: 2.50mm
- circuits_loaded: 4
- cable_length: 150.00mm
- material_resin: Polyester
- material_metal: Copper Alloy
- plating_mating: Matte Tin (0.889µm)
- plating_termination: Matte Tin
- wire_size_awg: 22
- wire_cable_type: UL 1061
- voltage_maximum: 250V AC (RMS)/DC
- material_info_drawing_numbers: 151370400-000
- elv: Not Relevant
- rohs: Compliant
- reach_svhc: Not Contained Per ED/61/2018
- halogen_free_status: Not Low-Halogen
- mates_with: 53375, 53426
Buy the 15137-0402 MOLEX Mini-Lock Wire-to-Board Connector | myMectronic
Purchase the MOLEX 15137-0402 Mini-Lock Wire-to-Board Connector securely and conveniently online.
Buy Now
Frequently Asked Questions
Where can I buy MOLEX 151370402?
You can click on the BUY or RFQ button to purchase 151370402 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 151370402?
You can download the 151370402 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 151370402?
MOLEX
