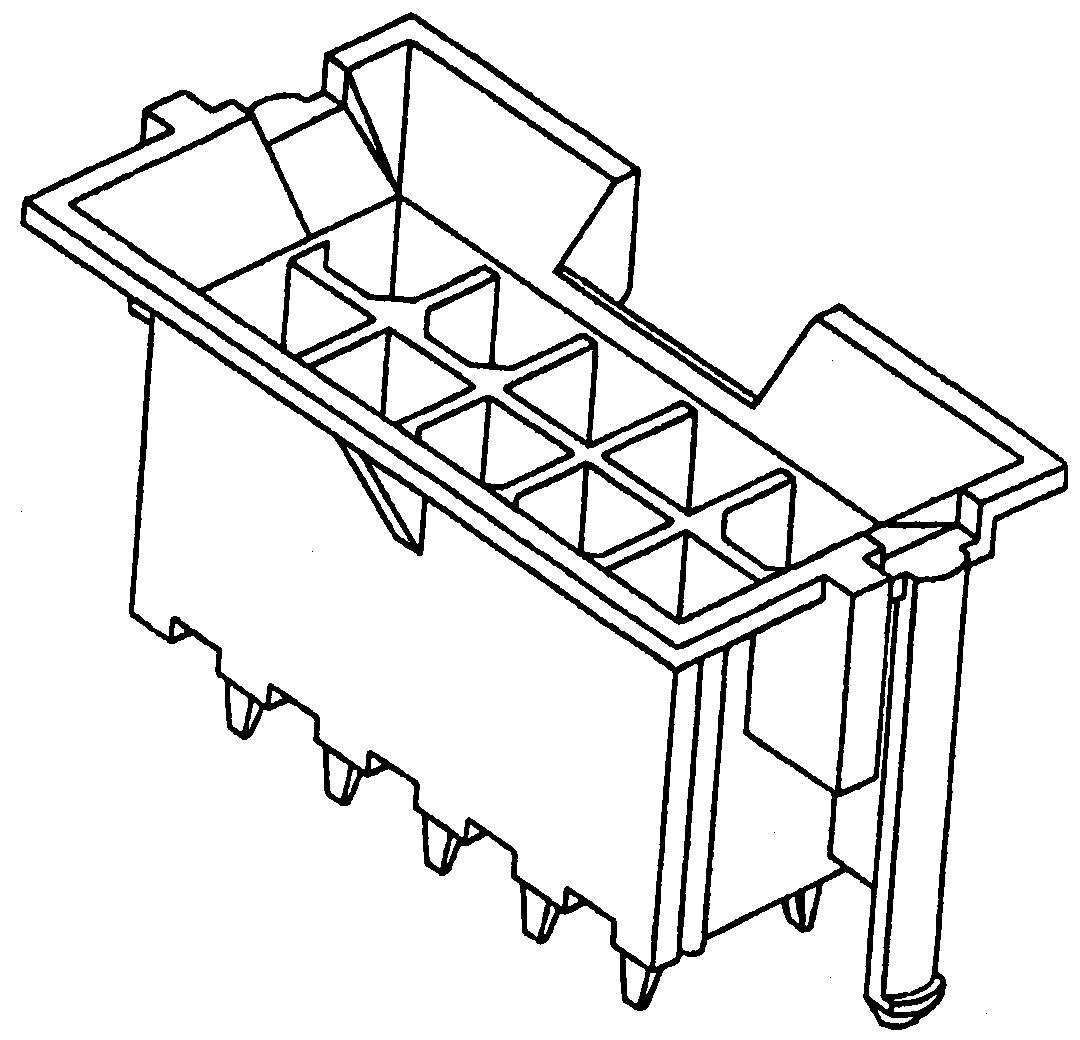

MOLEX 15246241 Power & Signal Connector
The Mini-Fit® BMI Header with 4.20mm pitch is a durable, high-current connector designed for board-to-board and wire-to-board applications. Made from PA Polyamide Nylon 6/6 with UL 94V-2 flammability rating, it features a dual-row, vertical configuration with snap-in plastic peg PCB lock and tin-plated brass contacts. Rated for 13A per circuit and 600V maximum, it supports up to 94 mating cycles. Its operating temperature ranges from -40°C to +105°C, making it suitable for a variety of demanding electrical environments.
MOLEX 15246241 Power & Signal Connector Specifications:
- Pitch: 4.20mm
- Circuits (Loaded): 24
- Maximum Circuits: 24
- Color - Resin: Natural
- Material - Resin: Nylon
- Material - Metal: Brass
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin
- Flammability: UL 94V-2
- Temperature Range - Operating: -40°C to +105°C
- Current - Max per Circuit: 13A
- Voltage - Max: 600V
- Durability (Mating Cycles Max): 94
- PCB Tail Length: 3.56mm
- Guide to Mating Part: Yes
- Lock to Mating Part: Yes
- Net Weight: 5.433g
- Packaging Type: Tray
- Shrouded: Yes
- Stackable: No
- Surface Mount Compatible (SMC): No
- Polarized to Mating Part: Yes
- Polarized to PCB: Yes
- Temperature Range - Max Process Temp: 240°C
- Solder Process Capability: Wave
- Contact Max Current: 13A
- Contact Max Voltage: 600V
Buy the Molex 15246241 – Reliable Power and Signal Connector for Industrial Applications
Purchase the Molex 15246241 Mini-Fit® BMI Header online today to enjoy dependable power and signal connections for industrial electronics. Its 4.20mm pitch, dual-row configuration, and tin-plated brass contacts provide excellent durability and reliable performance. Designed for board-to-board and wire-to-board applications, it supports up to 13A per circuit and 600V maximum, with up to 94 mating cycles. Easy to install and suitable for a temperature range from -40°C to +105°C, making it an ideal choice for demanding environments.
Order your Molex 15246241 Mini-Fit® BMI Header today and ensure durable, high-current connections for your industrial projects.
Frequently Asked Questions
Where can I buy MOLEX 15246241?
You can click on the BUY or RFQ button to purchase 15246241 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 15246241?
You can download the 15246241 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 15246241?
MOLEX
