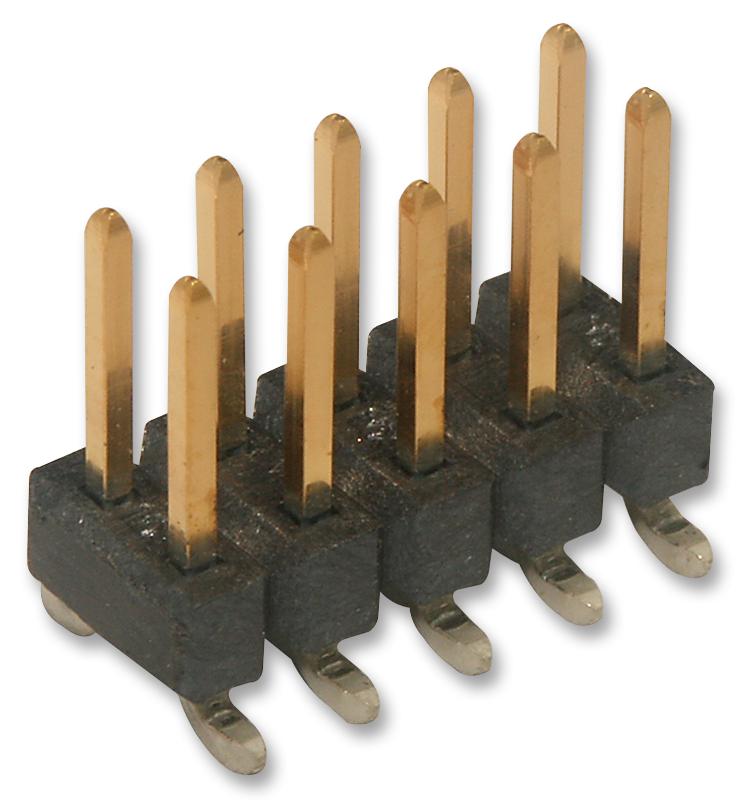

MOLEX 15913100 Board-to-Board Connector
This 2.54mm pitch dual-row connector system features a C-Grid design with a press-fit compliant pin for flexible connection options. It includes pre-assembled FFC and IDT connector assemblies, simplifying installation. Suitable for automotive, consumer electronics, communications, networking, lighting, and medical devices, it offers reliable board-to-board connections. Made with high-temperature thermoplastic, it supports a temperature range from -40°C to +105°C. The connector accommodates up to 10 circuits, with a maximum current of 3A per contact and voltage of 250V, ensuring robust performance in demanding environments.
MOLEX 15913100 Board-to-Board Connector Specifications:
- Pitch: 2.54mm
- Number of Rows: 2
- Circuits (Loaded): 10
- Circuits (Maximum): 10
- Color - Resin: Not specified
- Material - Metal: Phosphor Bronze
- Material - Plating Mating: Gold
- Material - Plating Termination: Tin
- Material - Resin: High Temperature Thermoplastic
- Operating Temperature Range: -40°C to +105°C
- Current - Maximum per Contact: 3.0A
- Voltage - Maximum: 250V
- Termination Interface: Surface Mount
- Durability (Mating Cycles Max): Not specified
- Flammability: UL 94V-0
- Packaged in Tube
- Orientation: Vertical
- Lock to Mating Part: No
- PCB Locator: None
- RoHS Compliant: Yes
- Halogen-Free: Yes
Buy the Buy Molex Connectors Part Number 15913100 Online
Purchase the Molex 15913100 board-to-board connector online today for its high reliability and flexible connection options. Designed with a 2.54mm pitch and dual-row configuration, it features a C-Grid design with press-fit compliant pins for easy installation. Suitable for automotive, consumer electronics, and medical devices, this connector supports operating temperatures from -40°C to +105°C, providing robust performance with a maximum current of 3A per contact and 250V. Secure yours now for efficient and dependable electronic assemblies.
Get Molex 15913100 today—designed for reliable board-to-board connections with versatile assembly options and high-temperature performance.
Frequently Asked Questions
Where can I buy MOLEX 15913100?
You can click on the BUY or RFQ button to purchase 15913100 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 15913100?
You can download the 15913100 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 15913100?
MOLEX
