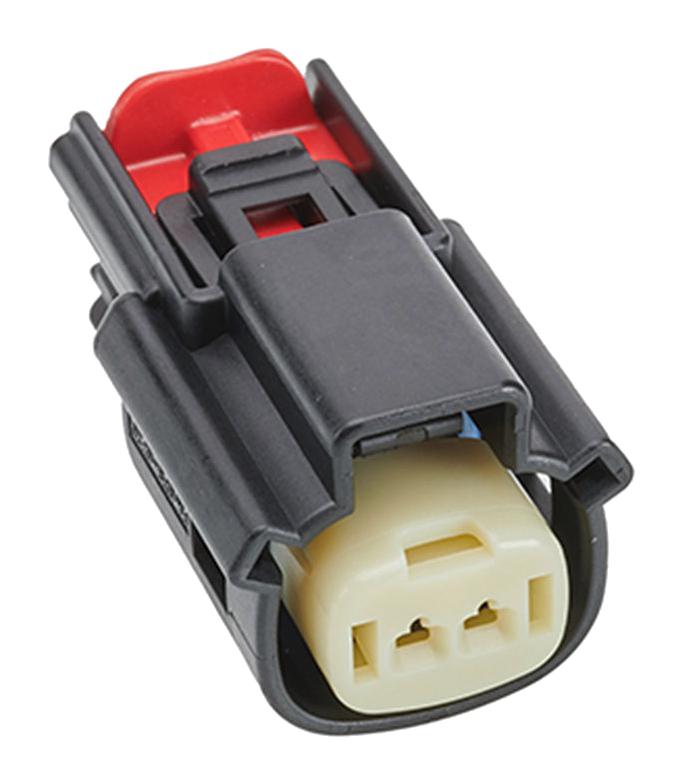

MOLEX 1601052001 MX150 Connector Assembly
The MOLEX 160105-2001 is a robust MX150 sealed female connector assembly, ideal for wire-to-board and wire-to-wire connections in automotive, industrial, and consumer electronics applications. Constructed with a black nylon resin body, this connector offers excellent durability and resistance to environmental factors. It's designed for single-row configurations with 2 circuits, features keying for proper mating, and is polarized to ensure correct alignment. The connector is UL 94V-0 rated for flammability and supports a temperature range of -40°C to +125°C, making it suitable for demanding environments. It is RoHS compliant and does not contain phthalates.
MOLEX 1601052001 MX150 Connector Assembly Specifications:
- overview: MX150 Sealed and Unsealed Connector System
- description: MX150 Mat-Sealed Female Connector Assembly, Single Row, 2 Circuits, UL 94V-0, Keying Option A, without Connector Position Assurance, Black
- series: 160105
- application: Wire-to-Board, Wire-to-Wire
- circuits_maximum: 2
- color: Black
- flammability: 94V-0
- gender: Receptacle
- glow_wire_capable: No
- keying_to_mating_part: Yes
- lock_to_mating_part: Yes
- material_resin: Nylon
- net_weight_g: 7.754
- number_of_rows: 1
- packaging_type: Bag
- panel_mount: No
- pitch_mating_interface: 3.50mm
- polarized_to_mating_part: Yes
- stackable: No
- temperature_range_operating_c: -40° to +125°
- eu_elv_compliant: Yes
- ul_certification: E29179
- reach_svhc: Not Contained
- halogen_free_status: Not Low-Halogen
- china_roh: Green Image
- rohs_compliant: Yes
- phthalates: Not Contained
- mates_with: 160106
- use_with: MX150 Female Terminal 33012, 33001; MX150 Sealed Receptacle Cavity Plug 343454001
