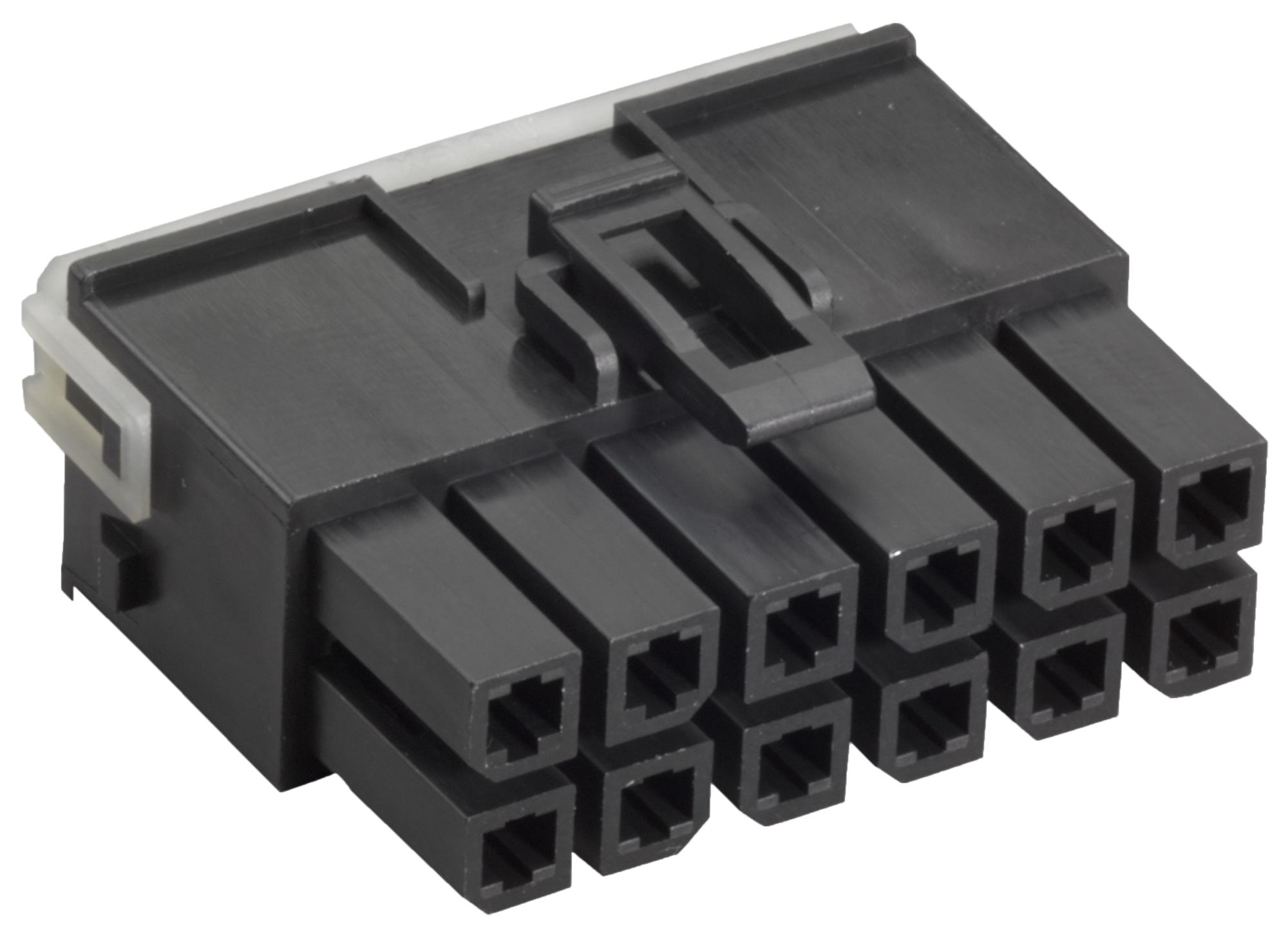

MOLEX 1716920212 Mega-Fit Power Connector
The MOLEX 171692-0212 is a Mega-Fit power connector receptacle housing, part of the 171692 series. This connector is designed for robust power transmission in wire-to-board and wire-to-wire applications. It boasts a dual-row configuration accommodating 12 circuits, and is manufactured from black nylon, ensuring excellent insulation and durability. The housing is UL 94V-0 rated and glow-wire capable, meeting stringent safety standards. It is compatible with Mega-Fit headers and plug housings, and utilizes TPA-capable terminals for efficient and secure connections. This connector is ideal for applications requiring reliable power delivery in automotive, industrial, and consumer electronics.
MOLEX 1716920212 Mega-Fit Power Connector Specifications:
- circuits_maximum: 12
- color_resin: Black
- gender: Receptacle
- glow_wire_capable: Yes
- keying_to_mating_part: None
- lock_to_mating_part: Yes
- material_resin: Nylon
- net_weight_g: 6.480
- number_of_rows: 2
- packaging_type: Bag
- panel_mount: No
- pitch_mating_interface_mm: 5.70
- pitch_termination_interface_mm: 5.70
- polarized_to_mating_part: Yes
- stackable: No
- temperature_range_operating_c: -40° to +105°C, -40° to +120°C
- elv_compliance: Not Relevant
- rohs_compliance: Compliant
- reach_svhc_compliance: Not Contained Per ED/88/2018
- halogen_free: No
- rohs_phthalates_compliance: Not Contained
- series: 171692
- mates_with: Mega-Fit Headers 76825, 76829, 172065, 172064, Mega-Fit Plug Housing 105411
- use_with: Mega-Fit TPA 105415, Mega-Fit Crimp Terminals 76823, 172063
