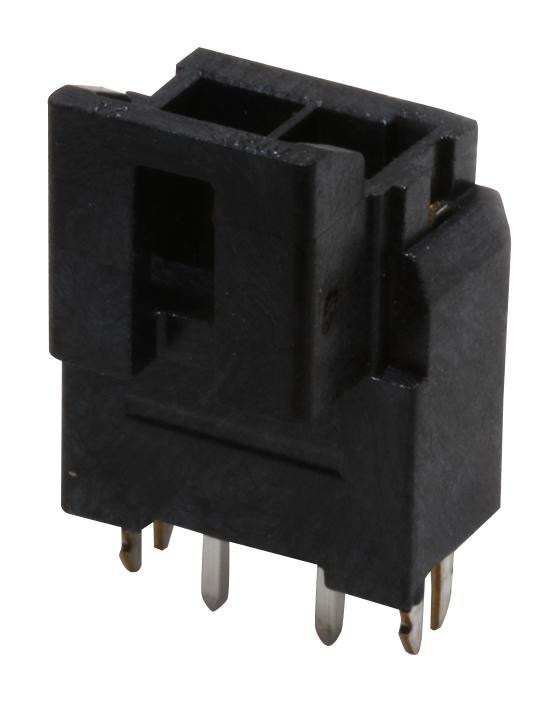

MOLEX 1722871102 Ultra-Fit Power Connector
The MOLEX 172287-1102 is a robust Ultra-Fit vertical header connector engineered for power transmission in wire-to-board applications. With a 3.50mm pitch and a dual-circuit configuration, it provides a secure and reliable connection. The tin plating on both mating and termination interfaces ensures excellent solderability and corrosion resistance. Designed for durability, it boasts a 25 mating cycle rating and is compatible with polarized PCBs. Its vertical orientation and through-hole termination style make it suitable for a wide range of industrial and commercial applications. Refer to the product specification for detailed current rating information.
MOLEX 1722871102 Ultra-Fit Power Connector Specifications:
- Product Family: PCB Headers
- Series: 172287
- Application: Power, Wire-to-Board
- Circuits (Loaded): 2
- Color - Resin: Black
- Durability (mating cycles max): 25
- Flammability: 94V-0
- Glow-Wire Capable: Yes
- Material - Metal: Copper Alloy
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin
- Material - Resin: Liquid Crystal Polymer
- Number of Rows: 1
- Orientation: Vertical
- PC Tail Length: 3.20mm
- PCB Locator: Yes
- PCB Retention: Yes
- PCB Thickness - Recommended: 1.60mm
- Pitch - Mating Interface: 3.50mm
- Pitch - Termination Interface: 3.50mm
- Plating min - Mating: 1.524µm
- Plating min - Termination: 1.524µm
- Polarized to Mating Part: Yes
- Polarized to PCB: Yes
- Shrouded: Fully
- Surface Mount Compatible (SMC): Yes
- Temperature Range - Operating: -40° to +120°C
- Termination Interface: Style: Through Hole
- Current - Maximum per Contact: 14.0A
- Voltage - Maximum: 400V AC (RMS)/DC
