MOLEX 190250002 Quick Disconnect Terminal
The Avikrimp Quick Disconnect for 18-22 AWG wire is a male terminal with a 4.75 x 0.51mm tab, designed for reliable and efficient crimping on insulated wires. It features a zinc-chromate plated brass metal contact, nylon insulation, and is suitable for operating temperatures from -65°C to +105°C. This standard quick-disconnect terminal conforms to CSA and UL certifications and is RoHS compliant. Ideal for electronic and electrical applications requiring secure, easy-to-mate connections with maximum voltage of 600V, ensuring safety and durability in various installations.
MOLEX 190250002 Quick Disconnect Terminal Specifications:
- Wire Size AWG: 18, 20, 22
- Tab Width: 4.75mm
- Tab Thickness: 0.51mm
- Material - Metal: Brass
- Material - Plating Mating: Zinc Chromate
- Material - Plating Termination: Zinc Chromate
- Material - Resin: Nylon (PA)
- Color - Resin: Red
- Voltage - Maximum: 600V
- Temperature Range - Operating: -65°C to +105°C
- Dimensions: 4.75 x 0.51mm tab, 6.30mm max. wire insulation diameter
- Flammability: UL 94V-2
- Gender: Male
- Insulation: Yes
- Lock to Mating Part: No
- Packaging Type: Bag
- Certification: UL Listed, CSA Certified, RoHS Compliant
- Net Weight: 0.802g

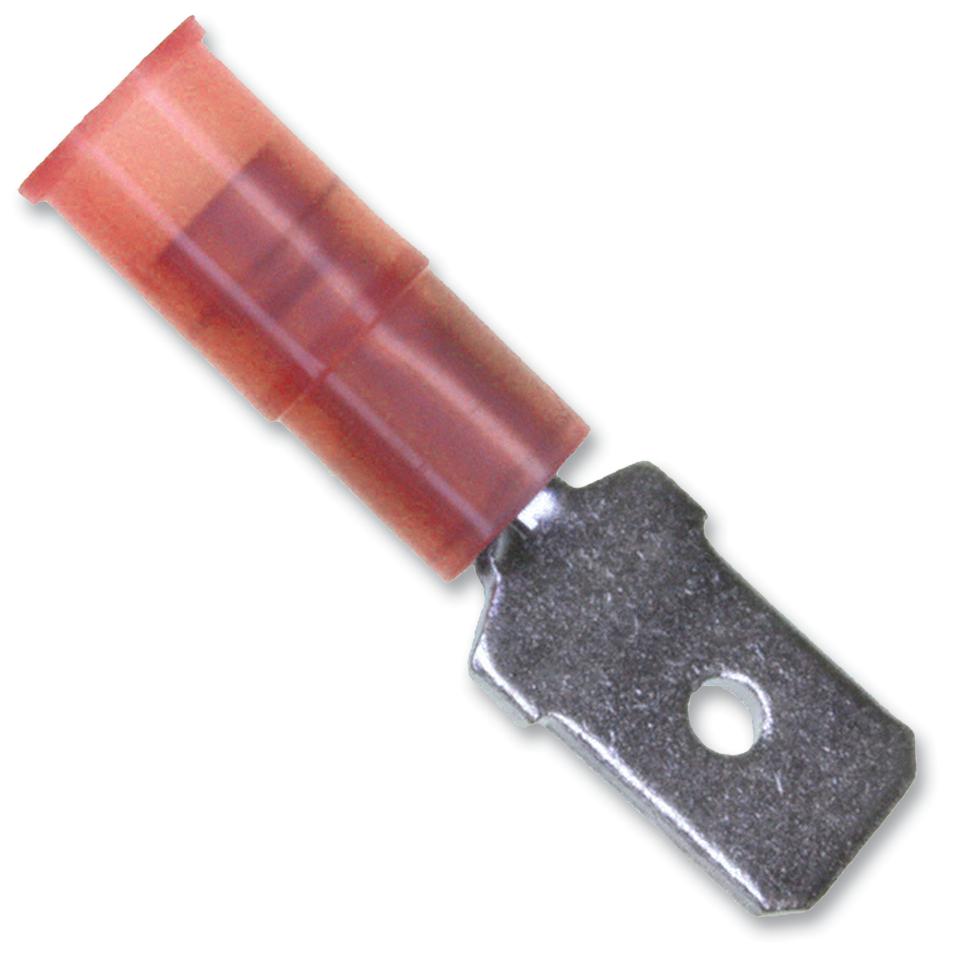

Buy the Buy Molex Part Number 190250002 Online
Secure your electrical connections with Molex's quick disconnect terminal, designed for 18-22 AWG wires. This male terminal features zinc-chromate plated brass and durable nylon insulation that withstands temperatures from -65°C to +105°C. Easy to install with UL and CSA certifications, providing safe, long-lasting performance at up to 600V. Buy online today to get reliable, efficient, and compliant terminals for your electrical assemblies and ensure your projects meet industry standards.
Order your Molex Series19025 190250002 quick disconnect terminal today and ensure secure, reliable connections for your electrical projects.
